- Ultra 265, H.265, H.264, MPEG compression
- IP67 rating
- 2D/3D DNR
- Smart IR, up to 30m
- ONVIF Conformance
- Day/night functionality

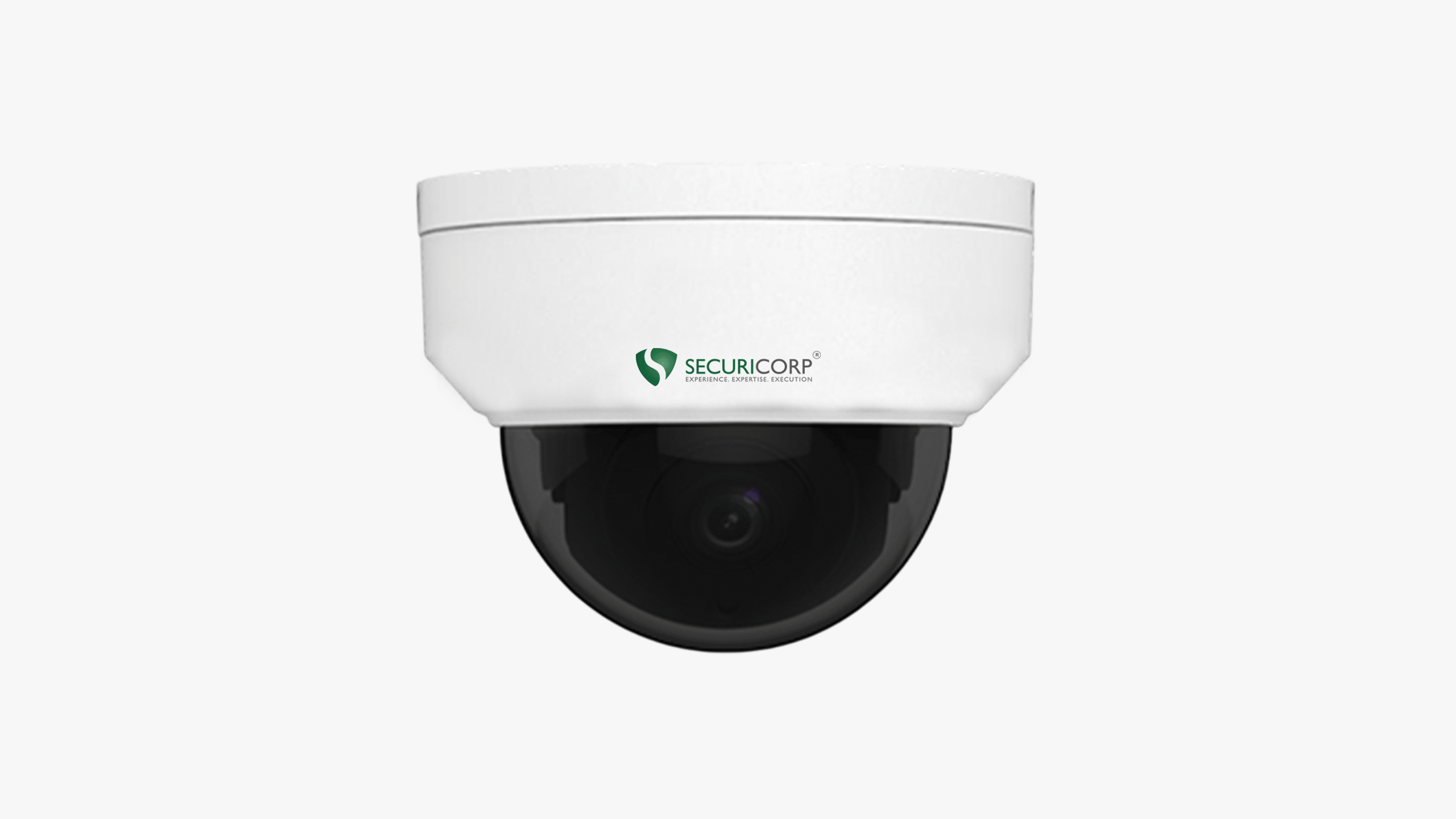

SCP-VDM08FFIR-WD28FR
8.0 Megapixel, Fixed Lens, WDR, Vandal-Resistant, IR Dome Network Camera
The SCP‑VDM08FFIR‑WD28FR is an 8 MP dome camera with a 2.8 mm fixed lens offering a wide 102° field of view. It features True WDR, Smart IR up to 30 m, and 2D/3D noise reduction for sharp imaging. Built with IK10 vandal resistance, IP67 weatherproofing, PoE or 12 V DC power, and supports Ultra265/H.265 streaming and micro‑SD storage for efficient, high-resolution surveillance.
Description
Specification
| Model Details | |
| Model Number | SCP-VDM08FFIR-WD28FR |
| Product Name | 8.0 Megapixel MP Fixed Lens Dome Network Camera |
| Camera | |
| Image Sensor | 1/3", 8.0 MP progressive scan CMOS |
| Lens | 2.8 mm @F2.0 |
| Angle of View | H: 112.7°, V: 60.1°, O: 146.5° |
| Electronic Shutter | Auto/Manual, 1~1/100000s |
| Mini. Illumination | 0.05Lux/F2.0( Color,AGC on) |
| 0Lux (IR on) | |
| Adjustment Angle | Pan: 0° ~ 360° |
| Tilt: 0° ~ 68° | |
| Rotate: 0° ~ 360° | |
| IR Distance | Up to 30m |
| S/N | >56dB |
| DNR | 2D/3D |
| WDR | 120dB |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL,QoS |
| ONVIF | Profile S, Profile T, API |
| Interface | 10/100M Base-TX Ethernet |
| Video | |
| Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | First Stream: 8MP (3840*2160): Max. 20 fps; 5MP(2944*1656): Max. 30 fps; 4MP(2560*1440): Max. 30 fps; 2MP(1920*1080): Max. 30 fps |
| Second Stream: 720P (1280*720): Max. 20 fps | |
| Third Stream: 4CIF (704*576): Max. 20fps | |
| HLC | Supported |
| BLC | Supported |
| OSD | Up to 4 |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 2 areas |
| Motion Detection | Up to 4 areas |
| General | |
| Power Consumption | >5.5W |
| Power Supply | 12 V DC±25%, PoE (IEEE802.3 af) |
| Dimensions | Φ108.7 x 81.1mm |
| Weight | 0.45kg |
| Working Environment | -35°C ~ +60°C , ≤95% RH |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
