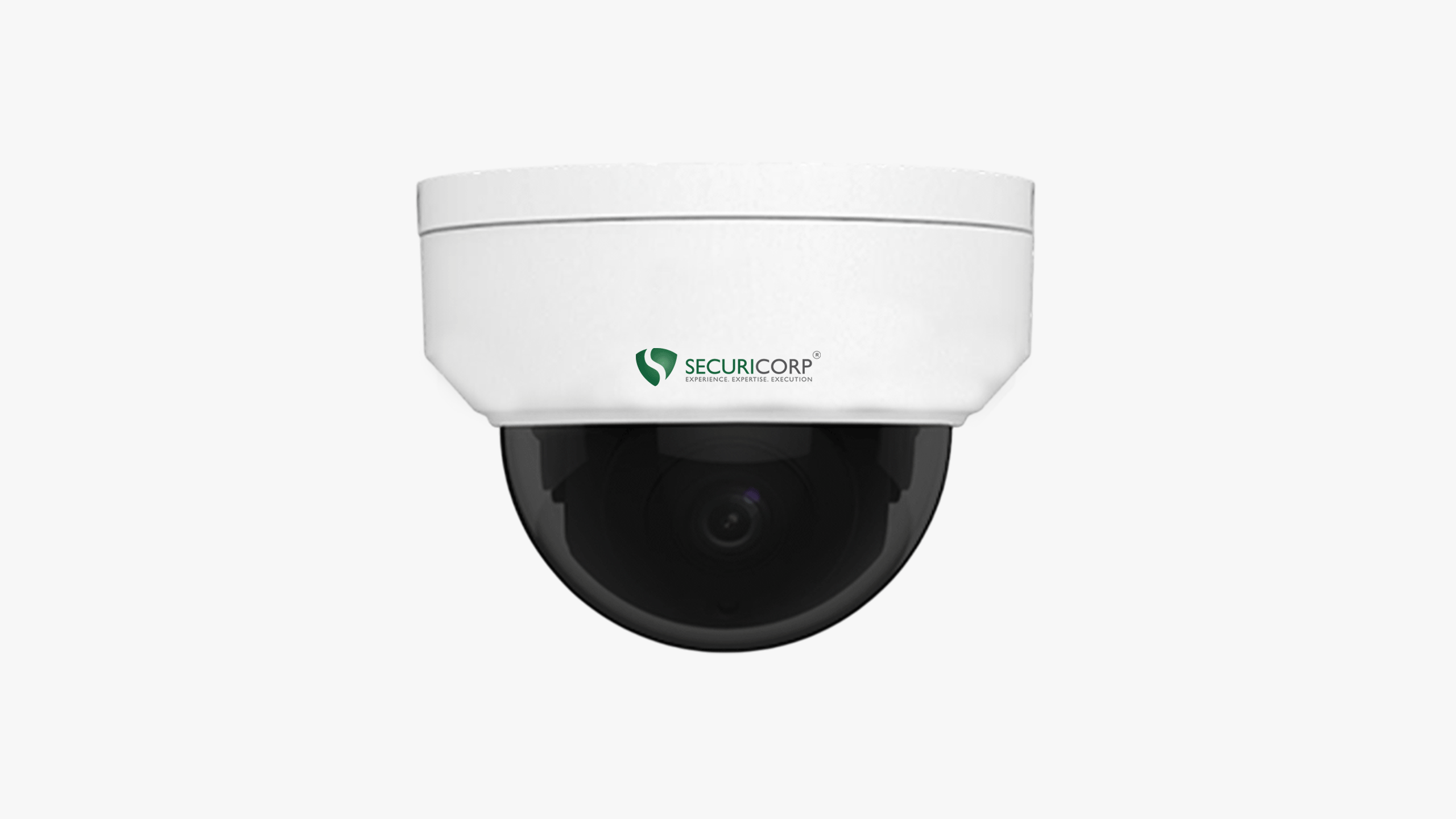

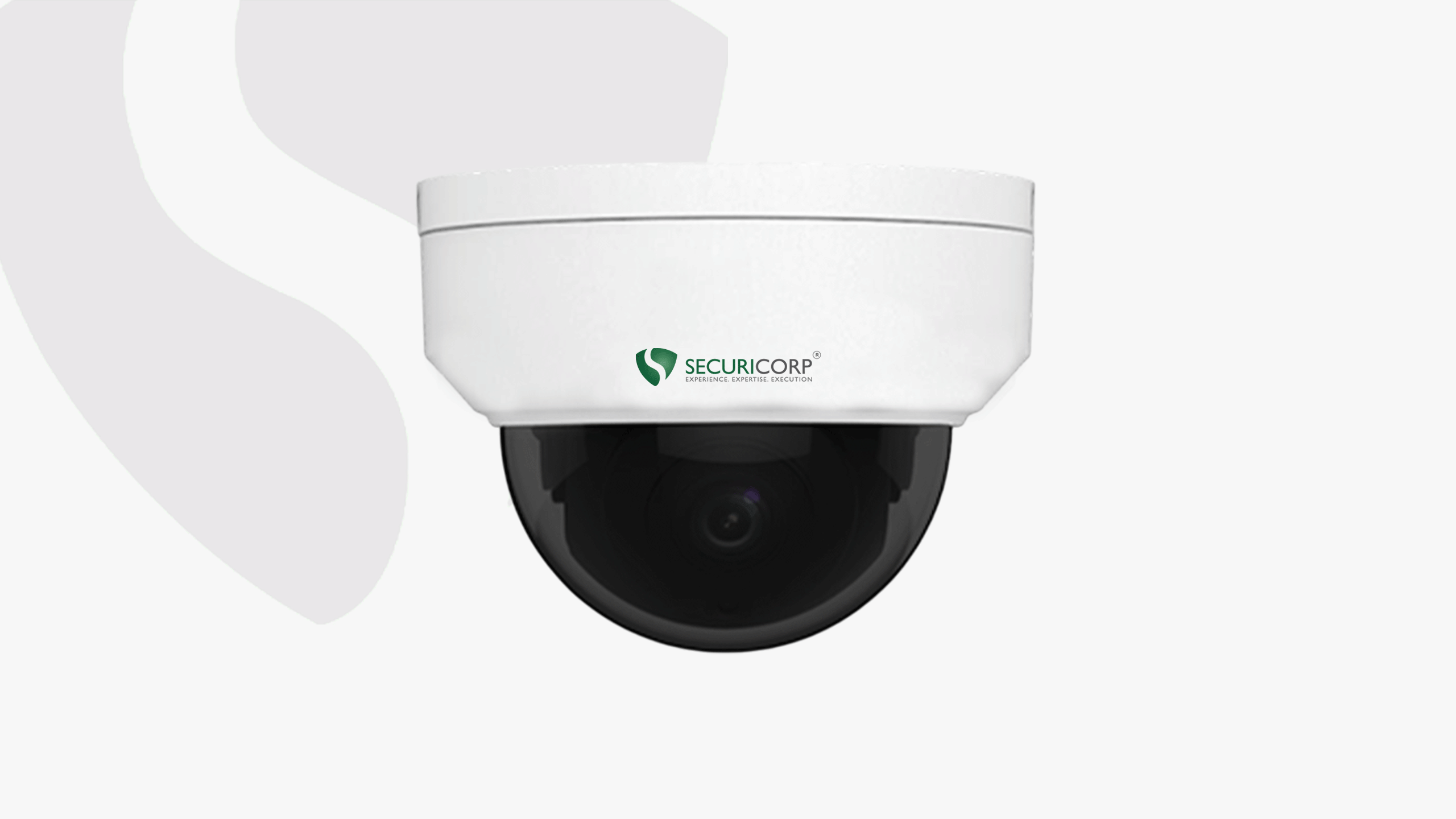

SCP-VDM04FFIR-FS34D

4.0 Megapixel, Fixed Lens, WDR, Vandal-Resistant, IR Dome Network Camera

The SCP‑VDM04FFIR‑FS34D is a 4 MP fixed-lens dome camera featuring a 2.8 mm lens with a 98° field of view, True WDR, and Smart IR up to 30 m. It supports 2D/3D DNR, Ultra265/H.265 streaming, and includes IK10 vandal resistance and IP67 weatherproofing. With PoE or 12 V DC power and micro‑SD storage support, it ensures reliable surveillance performance.

Description

Ultra 265, H.265, H.264, MPEG compression
IP67 rating
2D/3D DNR
Smart IR, up to 30m
ONVIF Conformance
Day/night functionality

Download Details

SAGITTIS MALESUAD

Ridiculus facilisi condimentum ridiculus tristique nostra litora parturient risus

LITORA PARTURIENT

Ridiculus facilisi condimentum ridiculus tristique nostra litora parturient risus

NISI VOLUTPAT

Ridiculus facilisi condimentum ridiculus tristique nostra litora parturient risus

TRISTIQUE IACULIS

Ridiculus facilisi condimentum ridiculus tristique nostra litora parturient risus

Specification

Model Details
Model Number	SCP-VDM04FFIR-FS34D
Product Name	4.0 Megapixel, Vandal resistant Fixed IR Dome Network Camera
Camera
Image Sensor	1/3", 4.0 MP progressive scan CMOS
Lens	2.8 mm @F2.0
Angle of View	H: 104.4°, V: 54.4°, O: 135.7°
Electronic Shutter	Auto/Manual, 1~1/100000s
Mini. Illumination	0.03Lux/F2.0( Color,AGC on)
	0Lux (IR on)
Adjustment Angle	Pan: 0° ~ 360°
	Tilt: 0° ~ 75°
IR Distance	Up to 30m
DNR	2D/3D
S/N	>52dB
WDR	DWDR
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
Frame Rate	First Stream: 4MP (2592*1520): Max. 20 fps;
	Second Stream: 720P (1280*720): Max. 20 fps;
	Third Stream: D1 (720*576): Max. 20 fps
OSD	Up to 4 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 2 areas
Motion Detection	Up to 4 areas
BLC	Supported
HLC	Supported
Smart
Behavior Detection	Intrusion, Motion, Tampering alarm
Network
Protocol	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
ONVIF	Supported (Profile S, Profile T)
Interface	1 RJ45 100M Base-TX Ethernet
General
Power Consumption	<4W
Power Supply	DC 12V±25%, PoE (IEEE 802.3af)
Ingress Protection	IP67
Vandal Resistant	IK10
Working Environment	-30°C ~ 60°C
Dimensions	Φ109 x 81mm
Weight	0.45 kg
