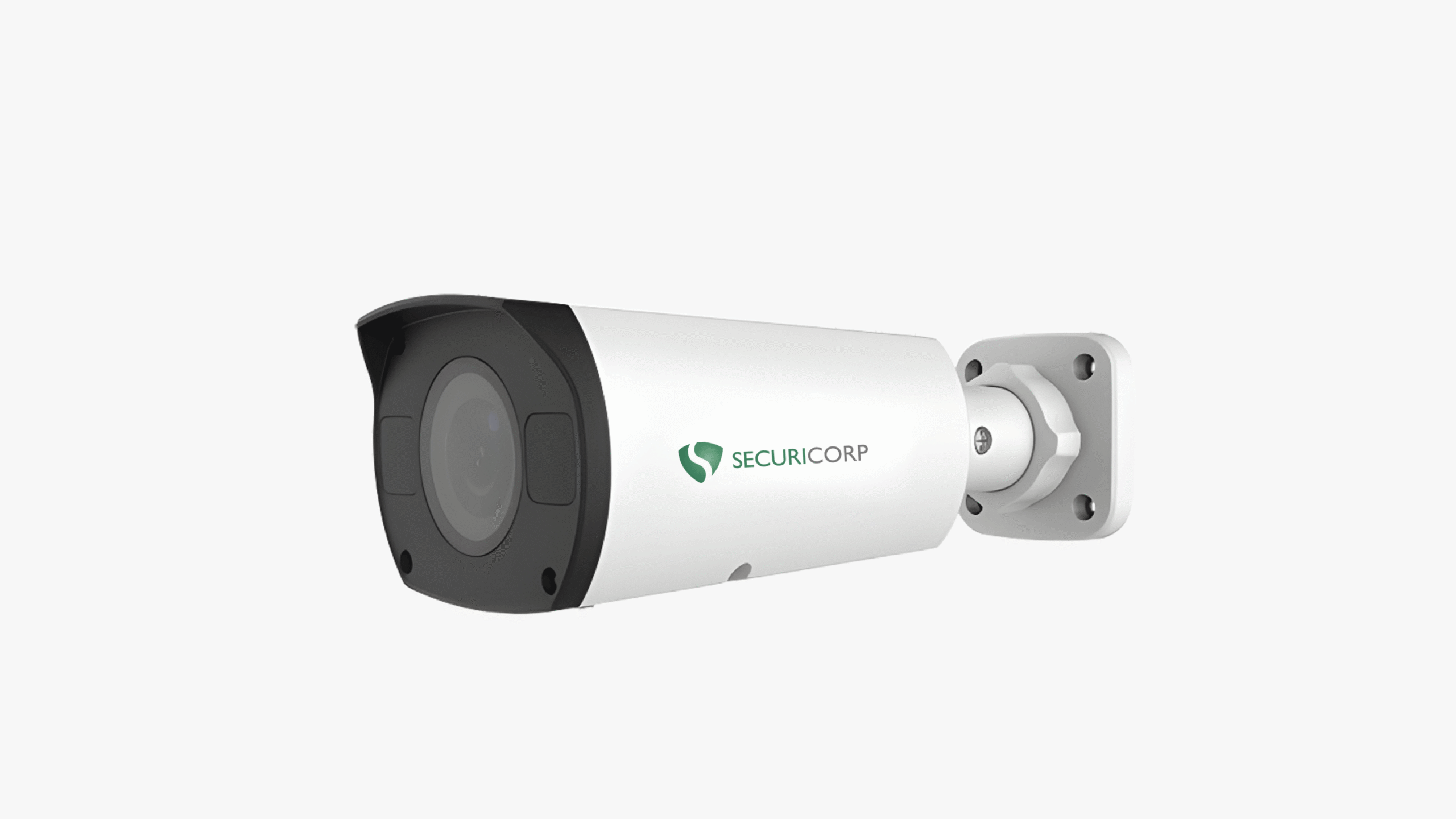

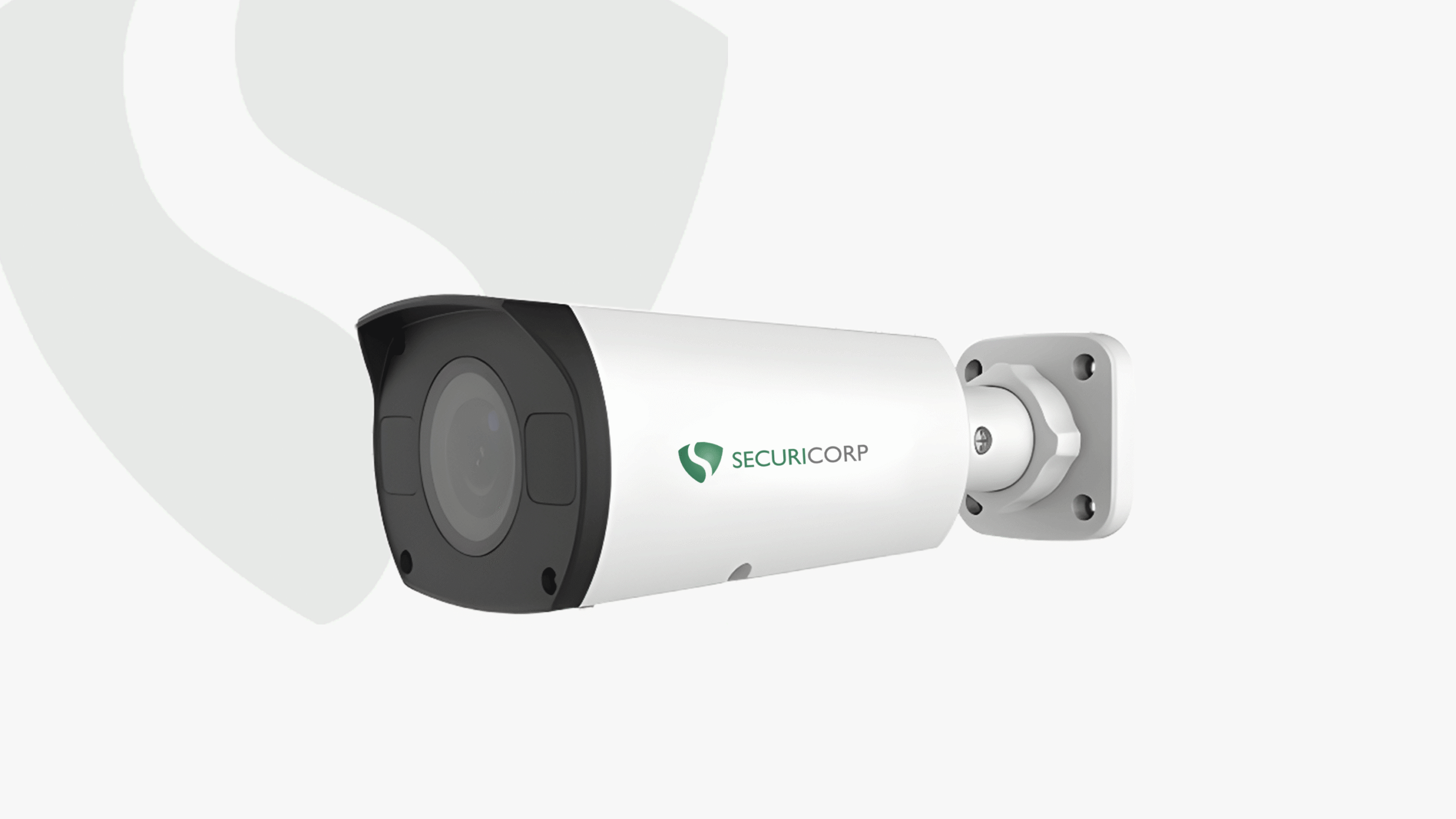

SCP-OBL02VFIR-66LNV

2.0 Megapixel, Varifocal Lens, WDR, IR Bullet Network Camera

The SCP‑OBL02VFIR‑66LNV is a 2 MP IR bullet camera featuring a motorized 2.8–12 mm varifocal lens, True WDR (120 dB), Smart IR up to 50 m, and 2D/3D DNR for crisp, clear video in diverse lighting. It supports Ultra265/H.265 streaming, has IP67 weatherproof protection, PoE/12 V DC power, and offers local storage with micro‑SD support.

Description

IP67 rating
2D/3D DNR
Smart IR, up to 30m
ONVIF Conformance
Day/night functionality
Ultra 265, H.265, H.264, MPEG compression

Download Details

SAGITTIS MALESUAD

Ridiculus facilisi condimentum ridiculus tristique nostra litora parturient risus

LITORA PARTURIENT

Ridiculus facilisi condimentum ridiculus tristique nostra litora parturient risus

NISI VOLUTPAT

Ridiculus facilisi condimentum ridiculus tristique nostra litora parturient risus

TRISTIQUE IACULIS

Ridiculus facilisi condimentum ridiculus tristique nostra litora parturient risus

Specification

Model Details
Product Number	SCP-OBL02VFIR-66LNV
Product Name	2.0 Megapixel, Varifocal Vandal Resistant IR Bullet Network Camera
Camera
Image Sensor	1/2.7", 2.0 MP progressive scan CMOS
Lens	2.8 ~ 12mm, manual zoom lens
Angle of View	H: 112.7° ~ 28.1, V: 60.1° ~ 15.4°, O: 146.5° ~ 33.2°
Electronic Shutter	Auto/Manual, 1~1/100000s
Mini. Illumination	0.01Lux/F1.6( Color,AGC on)
	0Lux (IR on)
Adjustment Angle	Pan: 0° ~ 360°
	Tilt: 0° ~ 90°
	Rotate: 0° ~ 360°
IR Distance	Up to 30m
S/N	>52dB
DNR	2D/3D
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
Frame Rate	First Stream: 1080P (1920*1080), Max 30fps;
	Second Stream: 720P (1280*720), Max 30fps;
	Third Stream: D1 (704*576), Max 30fps
OSD	Up to 4 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 2 areas
Motion Detection	Up to 4 areas
Network
Protocol	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
ONVIF	Supported (Profile S, Profile G, Profile T)
Interface	1 RJ45 100M Base-TX Ethernet
General
Power Consumption	<6.5W
Power Supply	DC 12V±25%, PoE (IEEE 802.3af)
Edge Storage	MicroSD, supports up to 256GB
Weather proof rating	IP67
Working Environment	-30°C ~ 60°C (-22°F ~ 140°F)
Dimensions	240.3 × 86.4 × 75.6mm
Weight	1 kg
