- Smart IR, up to 30 m
- 2D/3D Digital Noise Reduction
- Triple streams supported
- Up to 120 dB Optical Wide Dynamic Range
- IP67 rating
- Ultra 265, H.265, H.264, MJPEG
- IK10 vandal resistant
SCP-VDM02FFIR-WD82FP-U
2.0 Megapixel Full-Color Fixed IR Dome Analog Camera

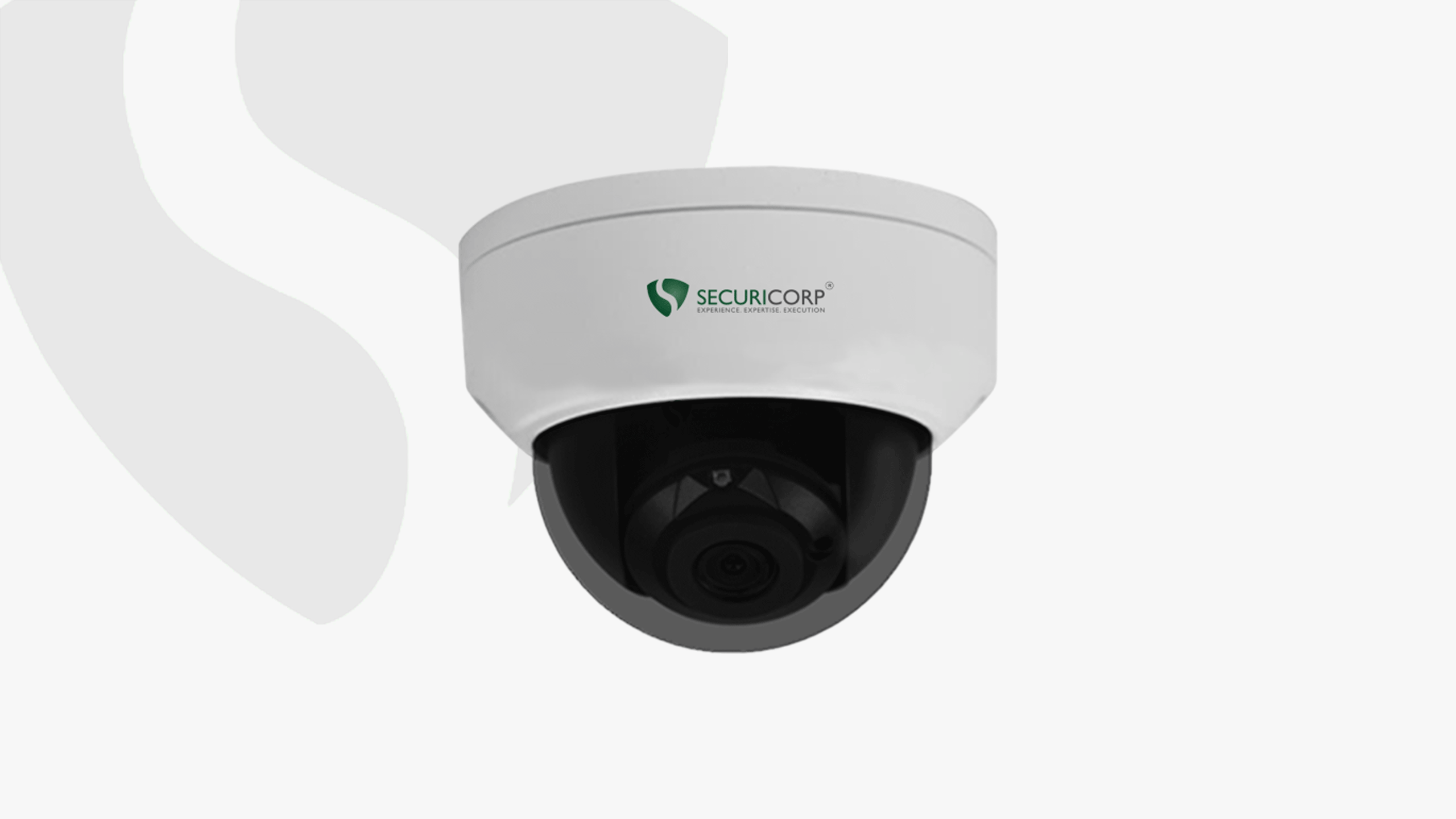

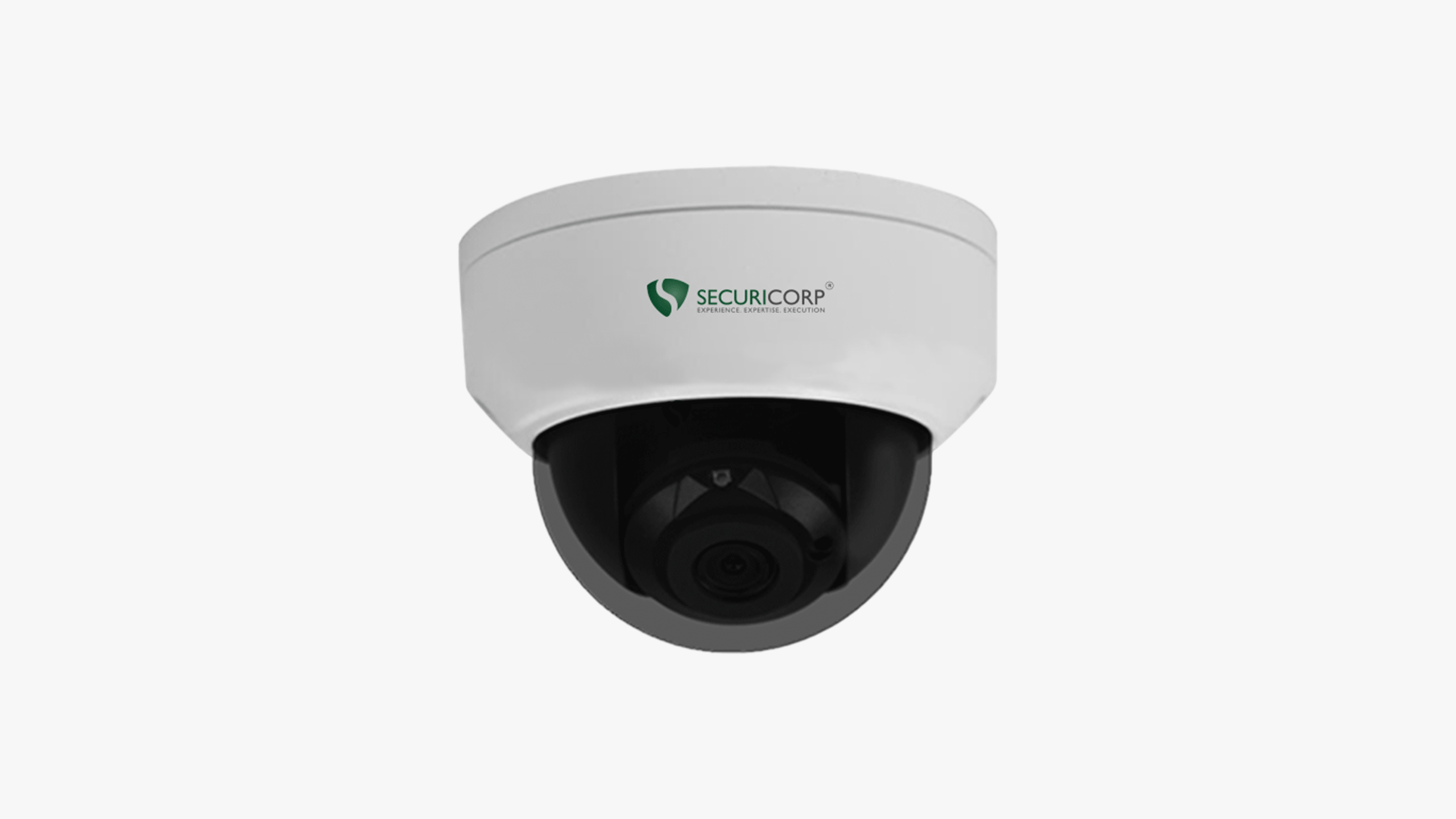

The SCP‑VDM02FFIR‑WD82FP‑U is a 2 MP analog dome camera equipped with a 3.6 mm fixed lens, True WDR, Smart IR, and white LED for full-color imaging in low light. Supporting AHD/TVI/CVI/CVBS outputs, it delivers vivid, noise-reduced footage with 3D DNR. Built for resilience, the camera features IP67 weatherproofing, PoC (Power over Coax) support, and durable performance for versatile surveillance needs.
Description
Specification
| Model Details | |
| Model | SCP-VDM02FFIR-WD82FP-U |
| Product Name | 2.0 Megapixel WDR, IR Fixed Lens Dome Camera |
| Camera | |
| Image Sensor | 1/2.7" 2MP progressive scan CMOS |
| Lens | 2.8 mm @F1.6 | 4.0 mm @F1.6 (optional) |
| Angle of view | H: 112.7°, V: 60.1°, O:146.5° (2.8 mm @F1.6) |
| H: 86.5°, V: 44.1°, O:106.4°(4.0mm@F1.6) | |
| Electronic Shutter | Auto/Manual |
| Mini. Illumination | 0.005 Lux@F1.6 (Color) , 0Lux IR On |
| WDR | 120dB |
| Digital Noise Reduction | 2D/3D |
| S/N | >52dB |
| Video | |
| Video Compression | Ultra 265/H.265/H.264/MJPEG |
| Frame Rate | First Stream: 2MP (1920×1080): Max. 30fps; |
| Second Stream: 2MP (1920×1080): Max. 30 fps; | |
| Third Stream: D1 (720×576): Max. 30fps; | |
| IR Led | |
| IR Distance | Up to 30m |
| Network | |
| Network Protocol | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
| ONVIF | Supported (Profile S, Profile G) |
| Audio | |
| Compression | G.711 |
| Sampling Rate | 8 KHZ |
| Interface | |
| Video Out | 1 BNC, impedance : 75 Ω |
| Audio | Input: impedance 35 kΩ, Output: impedance 600 Ω |
| Alarm I/O | 1/1 |
| RJ45 | 1 10M/100M Base-TX Ethernet |
| Micro SD | Up to 128 GB |
| Environmental | |
| Power Consumption | <5.5W |
| Power Supply | 12 V DC±25%, PoE (IEEE802.3 af) |
| Vandal Resistant | IK10 |
| Weather proof rating | IP67 |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F) |
| Dimensions | Ø108.5 x 81 mm |
| Weight | 0.45 kg |
