- Day/Night Functionality
- Smart IR, up to 30m (98 ft) IR distance
- Lowlight Surveillance
- 3D DNR (Digital Noise Reduction)
- H.264 High Profile
- Triple Streams
- ROI (Region of Interest)
- 9:16 Corridor Mode
- ONVIF Conformance
- Support PoE Power Supply
- Built-in PoE Splitter that Outputs DC 12V
- Wide Temperature Range: -40°C to 60°C (-40°F to 140°F)
- Wide Voltage Range of ±25%
- IK10 Vandal Resistant
- IP66
SCP-VDM02VFIR-77LN

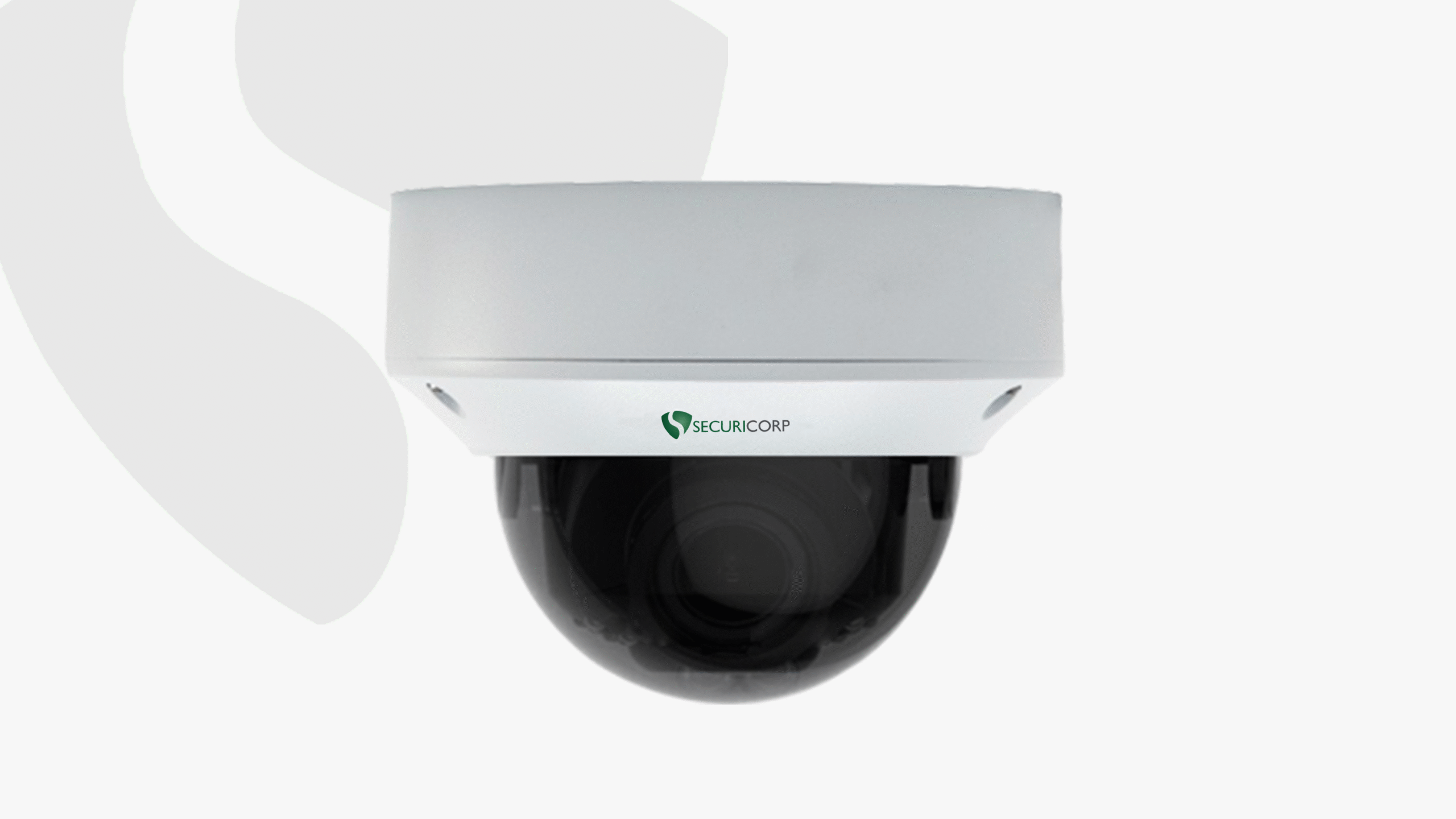

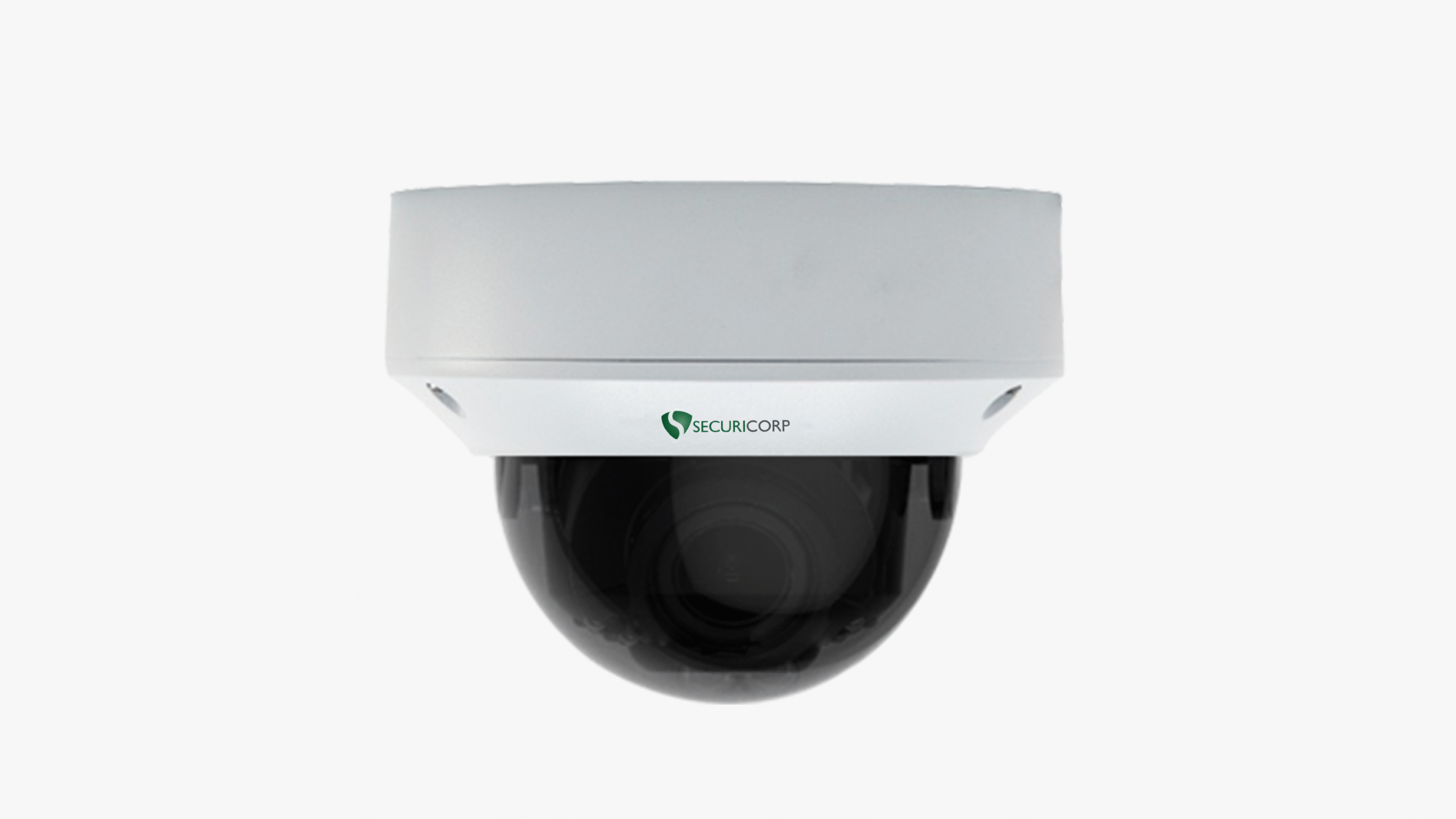

2.0 Megapixel WDR Fixed IR Dome Analog Camera
The SCP‑VDM02VFIR‑77LN is a 2 MP analog dome camera featuring a 2.8–12 mm vari-focal lens, True WDR, and Smart IR up to 30 m for crisp, detailed footage in all lighting. It supports multiple video output formats (AHD/TVI/CVI/CVBS) and includes 3D DNR for noise reduction. Designed for durability, it comes with IK10 vandal resistance and IP67 weatherproofing for reliable outdoor or indoor surveillance.
Description
Specification
| Model Details | |
| Model | SCP-VDM02VFIR-77LN |
| Product Name | 2.0 Megapixel Varifocal, Water-Proof, Vandal-Proof, Fixed IR Network Dome Camera |
| Camera | |
| Sensor | 1/2.9", 2 Megapixel, Progressive Scan CMOS |
| Shutter | Auto/Manual, 1/6~1/8000 s |
| Lens | 2.8~12 mm@F1.4; Angle of View (H): 100.0° (wide) ~30° (tele) |
| Zoom/Focus | Manual |
| Min. Illumination | Colour: 0.03 Lux (F1.4, 50IRE) |
| Black & White: 0.01Lux (F1.4, 50IRE) | |
| Day/Night | IR-cut filter with auto switch (ICR) |
| IR Range | Up to 30m (98 ft) IR range |
| S/N | >52dB |
| WDR | Digital WDR |
| Video | |
| Max. Resolution | 1920 × 1080 |
| Video Compression | H.264,MJPEG |
| Frame Rate | 1080P (1920×1080): Max. 30 fps; 720P (1280×720): Max. 30 fps; D1 (720×576): Max. 25 fps |
| 9:16 Corridor Mode | Supported |
| ROI | Supported |
| Video Streaming Available | Triple |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| Audio | |
| Audio Compression | N/A |
| Two-way Audio | N/A |
| Storage | |
| Edge Storage | Micro SD, up to 128 GB |
| Network | |
| Protocols | L2TP, Ipv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, Qos, NTP, FTP, HTTP, SNMP, SIP |
| Security | User Access Log, Password Protection, HTTPS Encryption, RTSP Authentication, ARP Binding, IP Address Filtering, Video Watermark, IEEE 802.1x |
| Compatible Integration | ONVIF, API |
| Interface | |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| Video Output | N/A |
| Reset | 1 Reset Button |
| Power Output | DC12V Power Output With PoE |
| General | |
| Power | 12 V DC, or PoE (IEEE802.3 af) |
| Power consumption: max.6.6 W (PoE :max.7.2 W) | |
| Dimensions (Ø x H) | Φ148 x 111.3 mm (Ø5.8” x 4.4”) |
| Weight | 0.75 kg (1.7 lb) |
| Working Environment | -40°C ~ +60°C (-40°F ~ 140°F), Humidity ≤ 90% RH(non-condensing) |
| Vandal Resistant | IK10 |
| Ingress Protection | IP66 |
