- Ultra 265, H.265, H.264, MPEG compression
- IP67 rating
- 2D/3D DNR
- Smart IR, up to 30m
- ONVIF Conformance
- Day/night functionality
SCP-OBL08FFIR-WD81RL

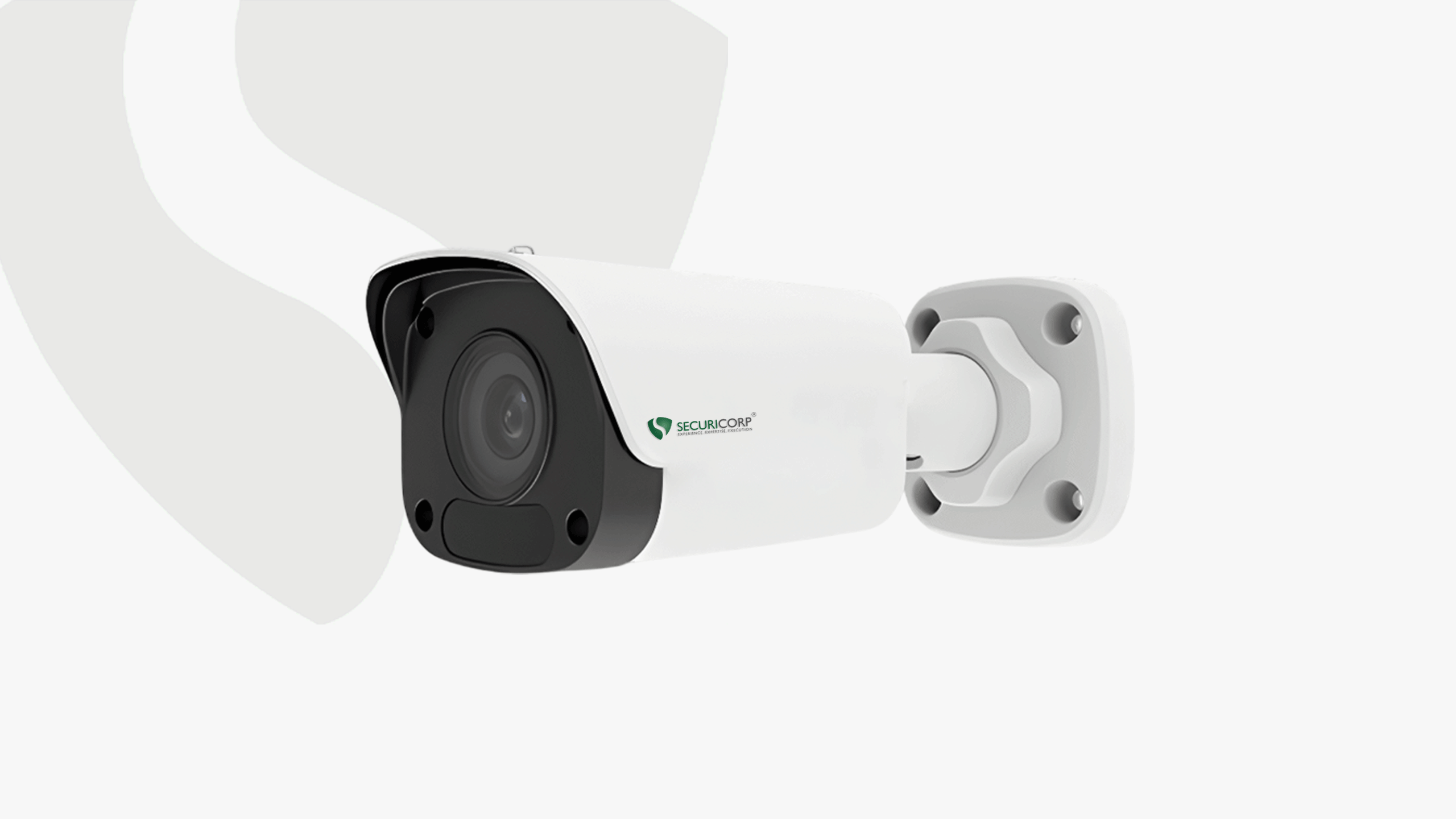

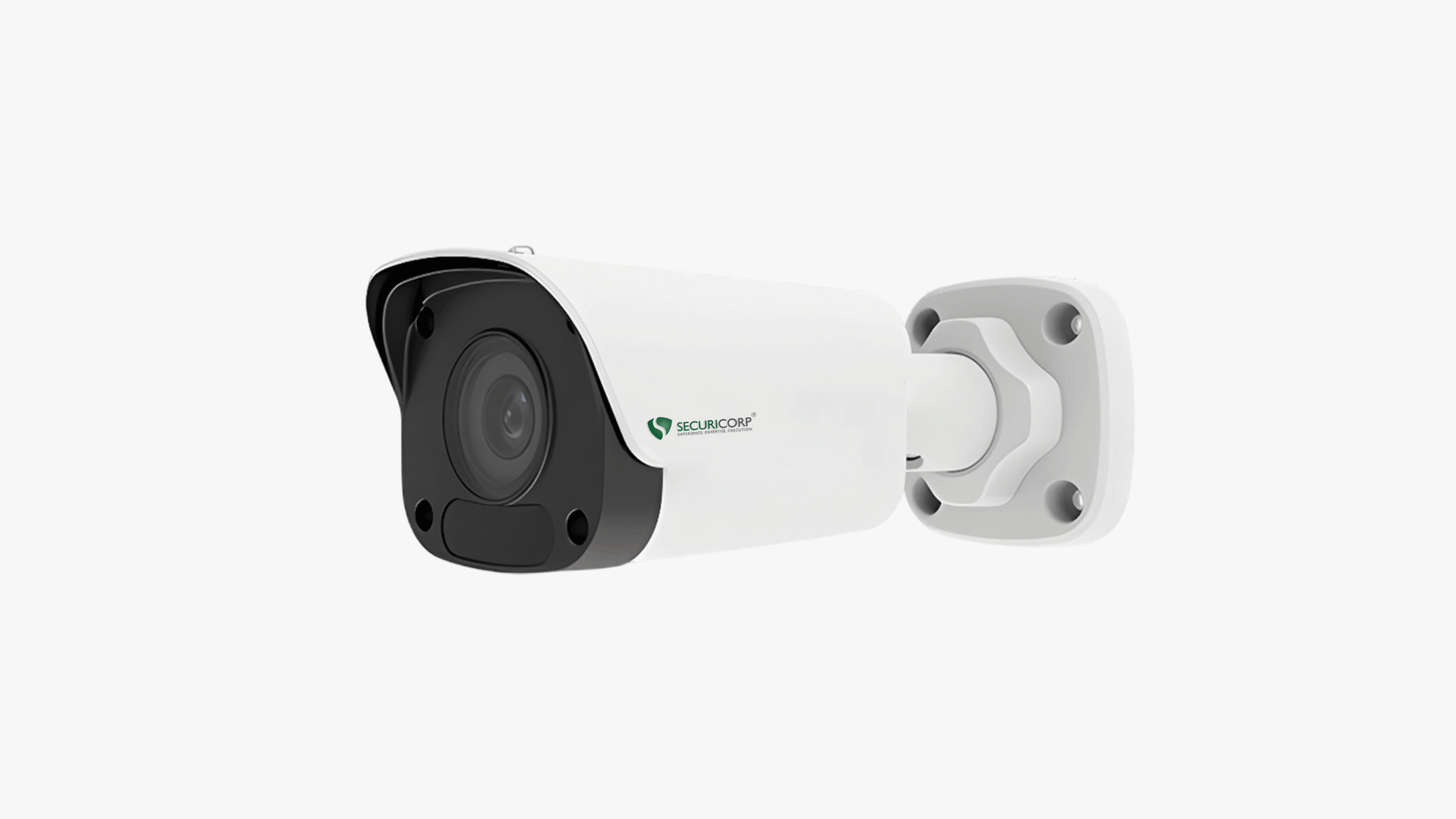

8.0 Megapixel, Fixed Lens, WDR, IR Bullet Network Camera
The SCP‑OBL08FFIR‑WD81RL is a robust 8 MP IR bullet camera equipped with a 4 mm fixed lens, True WDR (120 dB), and Smart IR up to 50 m for ultra-clear imaging in low light. It features 2D/3D DNR, Ultra265/H.265 streaming, and IP67-rated weatherproofing. Powered via PoE or 12 V DC, it includes micro‑SD storage and ONVIF compatibility for seamless integration.
Description
Specification
| Model Details | |
| Model Number | SCP-OBL08FFIR-WD81RL |
| Product Description | 8.0 Megapixel Fixed Lens Bullet Network Camera |
| Camera | |
| Image Sensor | 1/3", 8.0 MP progressive scan CMOS |
| Lens | 2.8 mm @ F2.0 |
| Angle of View | H: 112.7°, V: 60.1°, O: 146.5° |
| Electronic Shutter | Auto/Manual, 1~1/100000s |
| Mini. Illumination | 0.05Lux/F2.0( Color,AGC on) |
| 0Lux (IR on) | |
| Adjustment Angle | Pan: 0° ~ 360° |
| Tilt: 0° ~ 90° | |
| Rotate: 0° ~ 360° | |
| IR Distance | Up to 30m |
| S/N | >56dB |
| WDR | 2D/3D |
| WDR | 120dB |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL,QoS |
| ONVIF | Profile S, Profile T, API |
| Interface | 10/100M Base-TX Ethernet |
| Video | |
| Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | First Stream: 8MP (3840*2160): Max. 20 fps; 5MP(2944*1656): Max. 30 fps; 4MP(2560*1440): Max. 30 fps; 2MP(1920*1080): Max. 30 fps |
| Second Stream: 720P (1280*720): Max. 20 fps | |
| Third Stream: 4CIF (704*576): Max. 20fps | |
| HLC | Supported |
| BLC | Supported |
| OSD | Up to 4 |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 2 areas |
| Motion Detection | Up to 4 areas |
| General | |
| Power consumption | >5.5W |
| Power Supply | 12 V DC±25%, PoE (IEEE802.3 af) |
| Dimensions | 167.3 x 62.9 x 62.7mm |
| Weight | 0.45kg |
| Working Environment | -30°C ~ +60°C , ≤95% RH |
| Ingress Protection | IP67 |
| Reset Button | Supported |
