- Day/Night Functionality
- Smart IR, up to 30m (98 ft) IR distance
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- Lowlight Surveillance
- 3D DNR (Digital Noise Reduction)
- H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor mode
- ONVIF Conformance
- Built-in PoE splitter that outputs DC 12V
- Wide temperature range: -40°C to 60°C (-40°F to 140°F)
- Wide voltage range of ±25%
- IK10 vandal resistant
- IP66
SCM-VDM02VFIR-WD88DP

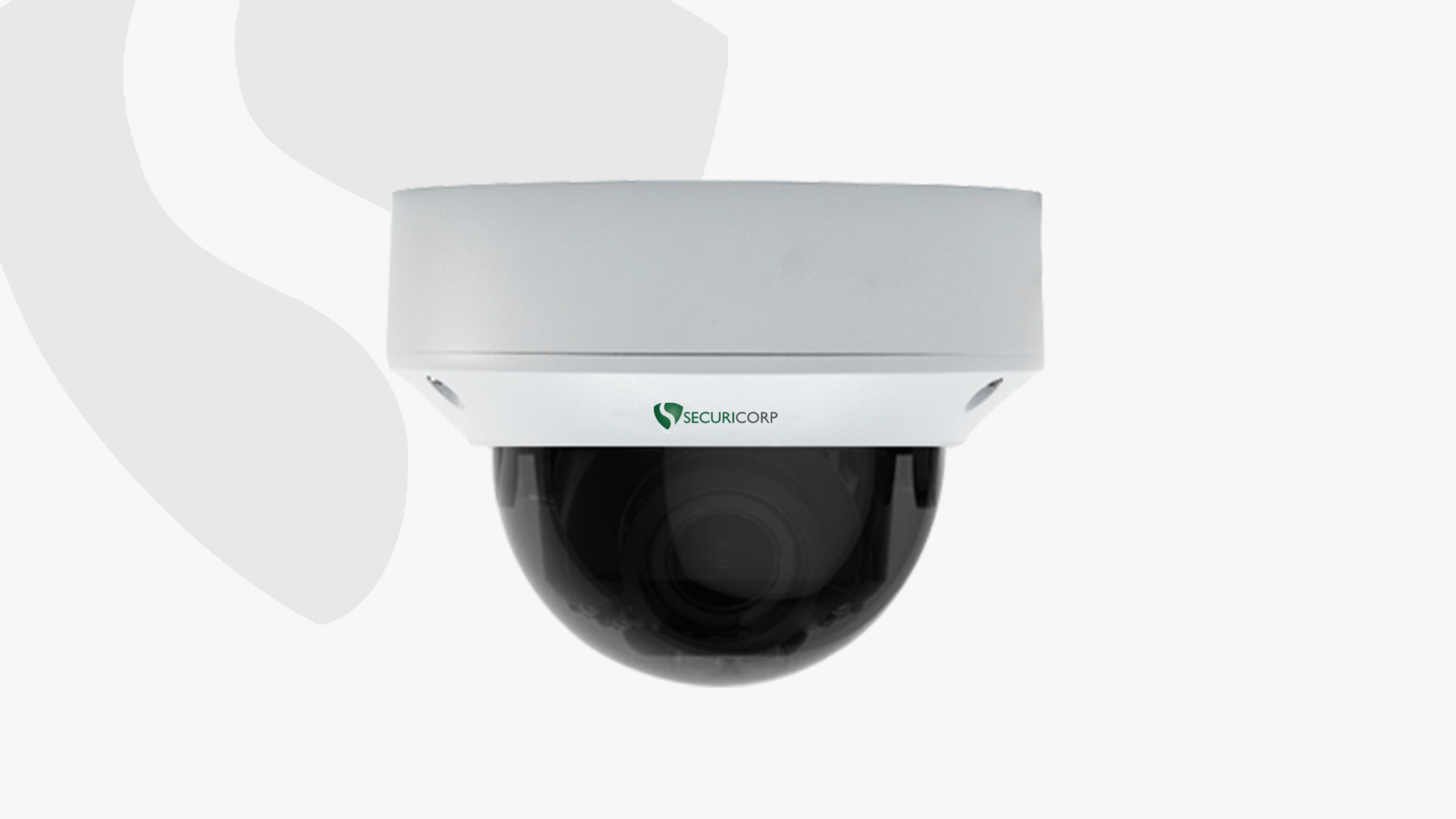

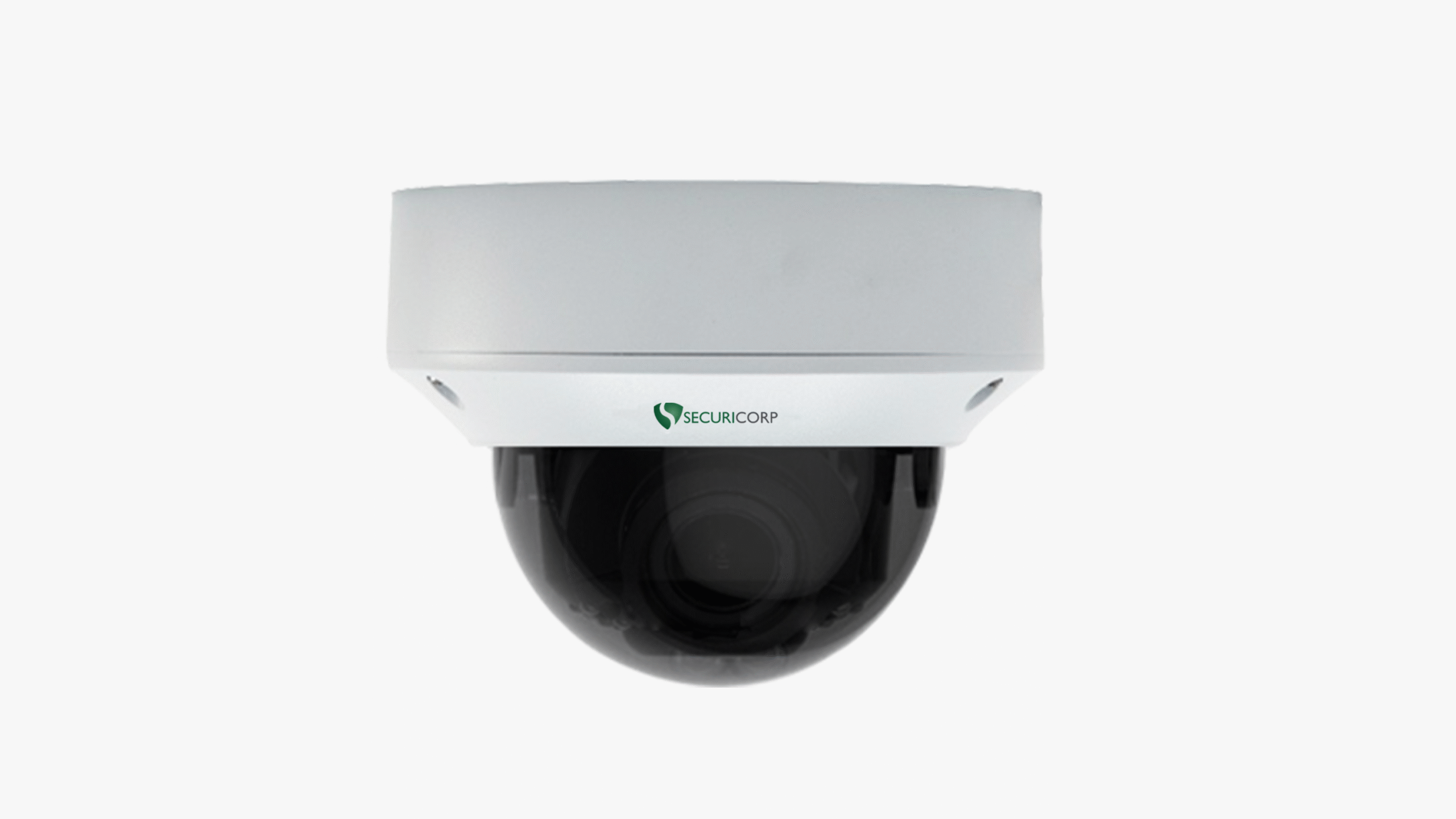

2.0 Megapixel WDR, Motorized, Vandal-Resistant, Fixed IR Dome Network Camera
The SCM‑VDM02VFIR‑WD88DP is a 2 MP dome camera with a motorized varifocal lens, True WDR (120 dB), and Smart IR up to 30 m for clear imaging. It features 3D DNR, H.264 triple streaming, and PoE support for easy installation. Built to withstand harsh environments with IK10 vandal resistance and IP66 weatherproofing, it also includes micro‑SD storage, ONVIF compatibility, and corridor mode for flexible surveillance solutions.
Description
Specification
| Model Details | |
| Model | SCM-VDM02VFIR-WD88DP |
| Product Name | 2.0 Megapixel WDR, IR Fixed Dome Network Camera |
| Camera | |
| Sensor | 1/3", 2 Megapixel, Progressive Scan CMOS |
| Shutter | Auto/Manual, 1/6~1/100000 s |
| Lens | 2.8~12mm @F1.4; Angle of view: 95°~29° |
| Zoom/Focus | Manual |
| Min. Illumination | Colour: 0.02 Lux (F1.4, AGC ON) |
| 0 Lux with IR on | |
| Day/Night | IR-cut filter with auto switch (ICR) |
| IR Range | Up to 30m (98 ft) IR range |
| S/N | >55 dB |
| WDR | Optical WDR (up to 120 dB) |
| Video | |
| Max. Resolution | 1920 x 1080 |
| Video Compression | H.265,H.264,MJPEG |
| Frame Rate | 1080P (1920 x 1080) @30 fps; 1080P (1920 x 1080) @25fps |
| 9:16 Corridor Mode | Supported |
| ROI | Supported |
| Video Streaming Available | Triple |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| Smart | |
| Behavior Detection | Intrusion, crossing line, motion detection |
| Exception Detection | Audio detection |
| Intelligent Identification | Face detection |
| Statistical Analysis | People counting |
| Audio | |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Storage | |
| Edge Storage | Micro SD, up to 128 GB |
| Network | |
| Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x |
| Compatible Integration | ONVIF, API |
| Interface | |
| Audio I/O | Audio Cable |
| Input: impedance 35 kΩ; amplitude 2 V [p-p] | |
| Output: impedance 600 Ω; amplitude 2 V [p-p] | |
| Alarm I/O | 1/ 1 |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| Video Output | 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] |
| Reset | 1 Reset Button |
| Power Output | DC12V Power Output With PoE |
| General | |
| Power | 12 V DC, or PoE (IEEE802.3 af) |
| Power consumption: Max.6.6 W (PoE :Max.7.2 W) | |
| Dimensions (Ø x H) | Φ148 x 111.3 mm (Ø5.8” x 4.4”) |
| Weight | 0.75 kg (1.7 lb) |
| Working Environment | -40°C ~ +60°C (-40°F ~ 140°F), Humidity ≤ 95% RH (non-condensing) |
| Vandal Resistant | IK10 |
| Ingress Protection | IP66 |
