- 30X Optical Zoom
- Accurate and Fast Focusing
- Smart IR, up to 100 m (328 ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- H.264 High Profile
- Triple streams
- Customized OSD
- ONVIF Conformance
- Innovative snow-removing functionality
- More effective heat dissipation system
- Intelligent temperature control technology
- 6 KV surge protection designed for network interface

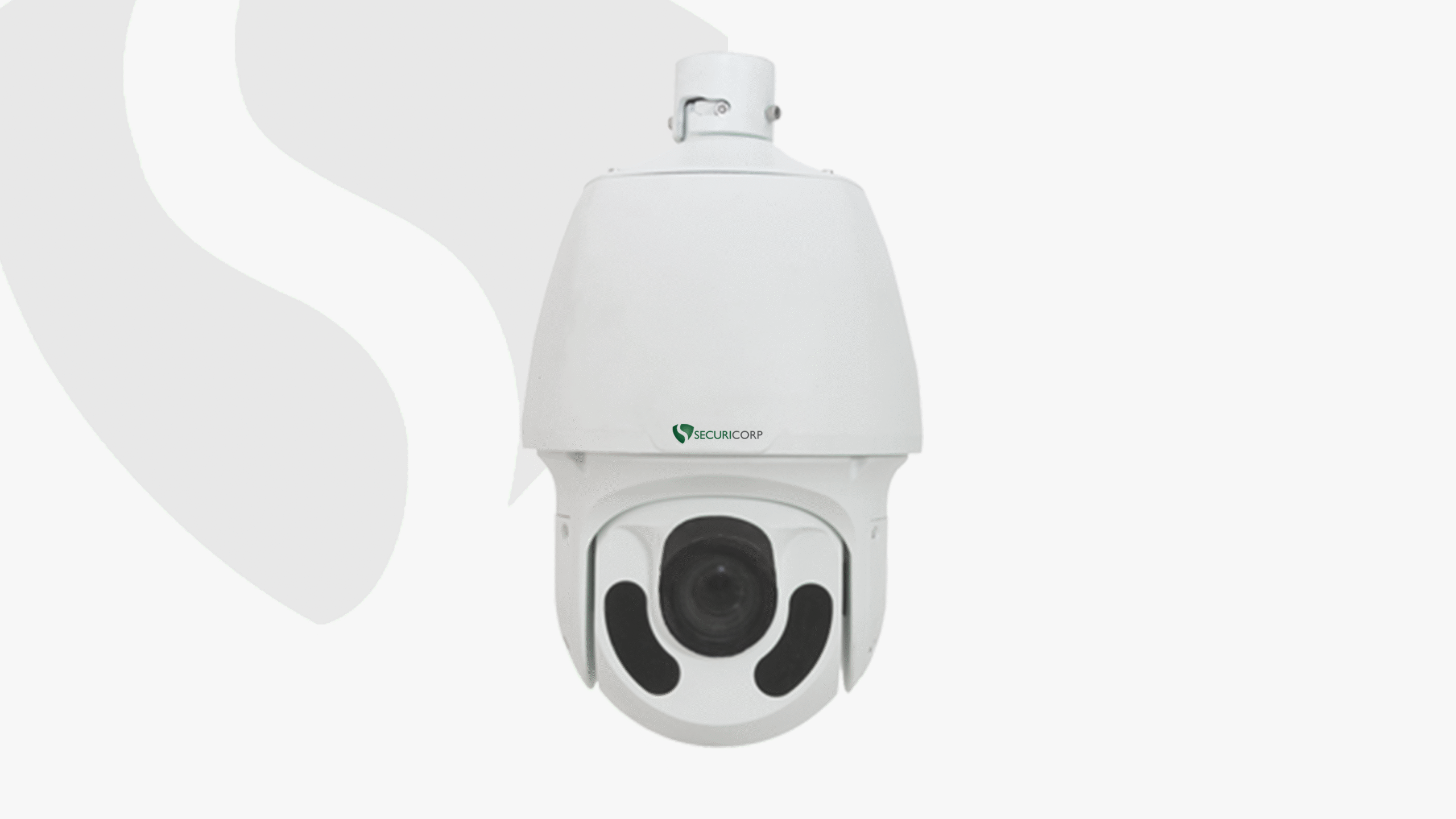

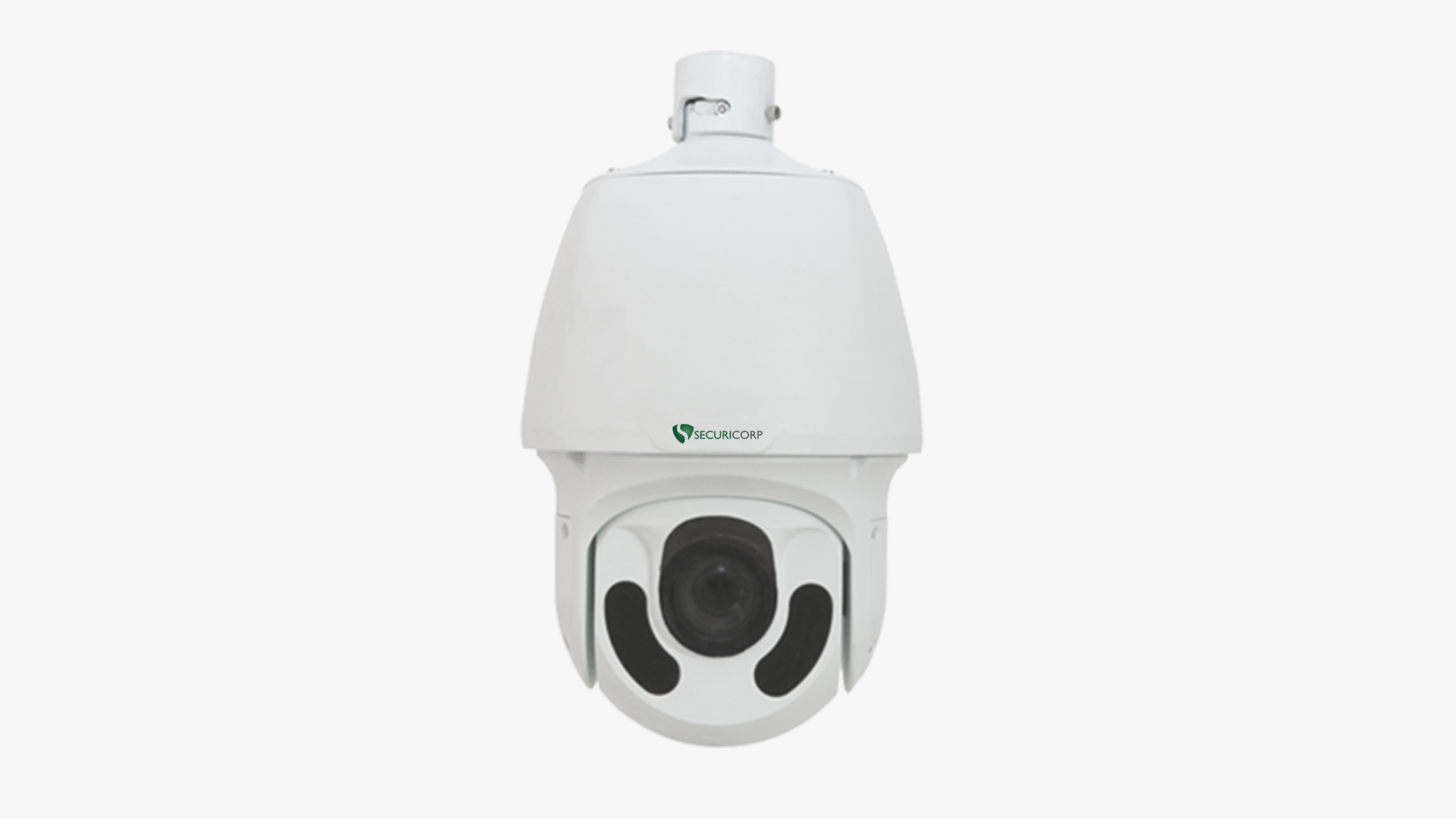

SCL-SDM02MVIR-DP2230X
2.0 Megapixel 30X, IR, PTZ, HD Dome Network Camera
The SCL‑SDM02MVIR‑DP2230X is a 2 MP PTZ dome camera with 30× zoom, fast autofocus, and True WDR for crisp imaging in all light conditions. It includes Smart IR up to 100 m, H.264 streaming, ONVIF support, and customizable OSD.
Description
Specification
| Model Details | |
| Model | SCL-SDM02MVIR-DP2230X |
| Product Name | 2.0 Megapixel 30X, IR, PTZ, HD Dome Network Camera |
| Camera | |
| Sensor | 1/2.8", 2.0 Megapixel, Progressive Scan, CMOS |
| Lens | 4.5 ~ 135 mm (30x optical zoom) |
| Angle of View (H) | 62.9° (wide) ~ 2.3° (Tele) |
| Iris | Auto/Manual; F1.6 ~ F4.8 |
| Shutter | Auto/Manual; Shutter time: 1/6 s ~ 1/8000 s |
| Minimum Illumination | Colour: 0.03 lux (F1.6, 50IRE) |
| B/W: 0.01 lux (F1.6, 50IRE) | |
| S/N | >52dB |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Video | |
| Max. Resolution | 1920 × 1080 |
| Video Compression | H.264,MJPEG |
| Frame Rate | 1080P (1920*1080): Max. 30 fps; 720P (1280*720): Max. 30 fps; D1 (720*576): Max. 25 fps |
| Video Streaming Available | Triple |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| Digital Zoom | Supported |
| Audio | |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Storage | |
| Edge Storage | Micro SD, up to 128 GB |
| Network | |
| Protocols | L2TP, Ipv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, NTP, FTP, HTTP, SNMP, SIP |
| Security | User Access Log, Password Protection, HTTPS Encryption, RTSP Authentication, ARP Binding, IP Address Filtering, Video Watermark, IEEE 802.1x |
| Compatible Integration | ONVIF, API |
| Pan & Tilt | |
| Pan Range | 360° (endless) |
| Pan Speed | 0.1°/s ~ 240°/s |
| Preset speed: 300°/s | |
| Tilt Range | –15° ~ +90° (auto reverse) |
| Tilt Speed | 0.1° ~ 160°/s |
| Preset speed: 240°/s | |
| Number of Preset | 255 |
| Patrol | Up to 16 patrols, up to 32 presets per patrol |
| Note: The total number of patrols and patterns is 16. | |
| Pattern | Up to 16 patterns, with the total recording time not less 15 minutes per pattern |
| Interface | |
| Audio I/O | Audio Cable |
| Input: impedance 35 kΩ; amplitude 2 V [p-p] | |
| Output: impedance 600 Ω; amplitude 2 V [p-p] | |
| Alarm I/O | 1/1 |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| General | |
| Power | 24 V AC, 24 V DC |
| Power Consumption: 9 ~ 42W (IR:16W, heater: Max. 24 W) | |
| Dimensions (Ø x H) | Ø227 x 359.4 mm (Ø8.9” x 14.2”) |
| Weight | 5.28 kg (11.6 lb) |
| Working Environment | –40°C ~ +65°C (-40°F ~ 149°F), Humidity ≤ 90% RH(non-condensing) |
| Ingress Protection | IP66 |
