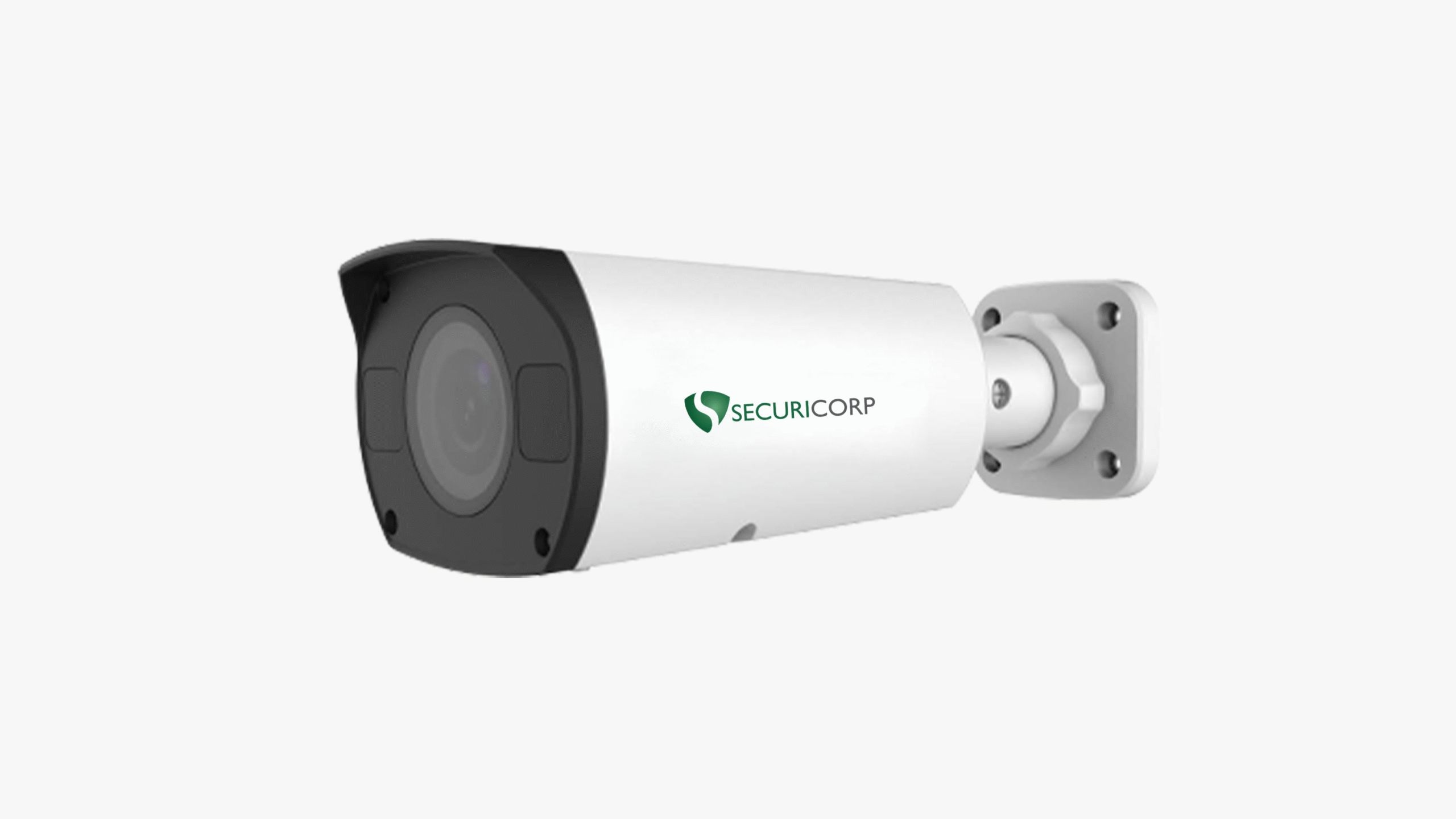

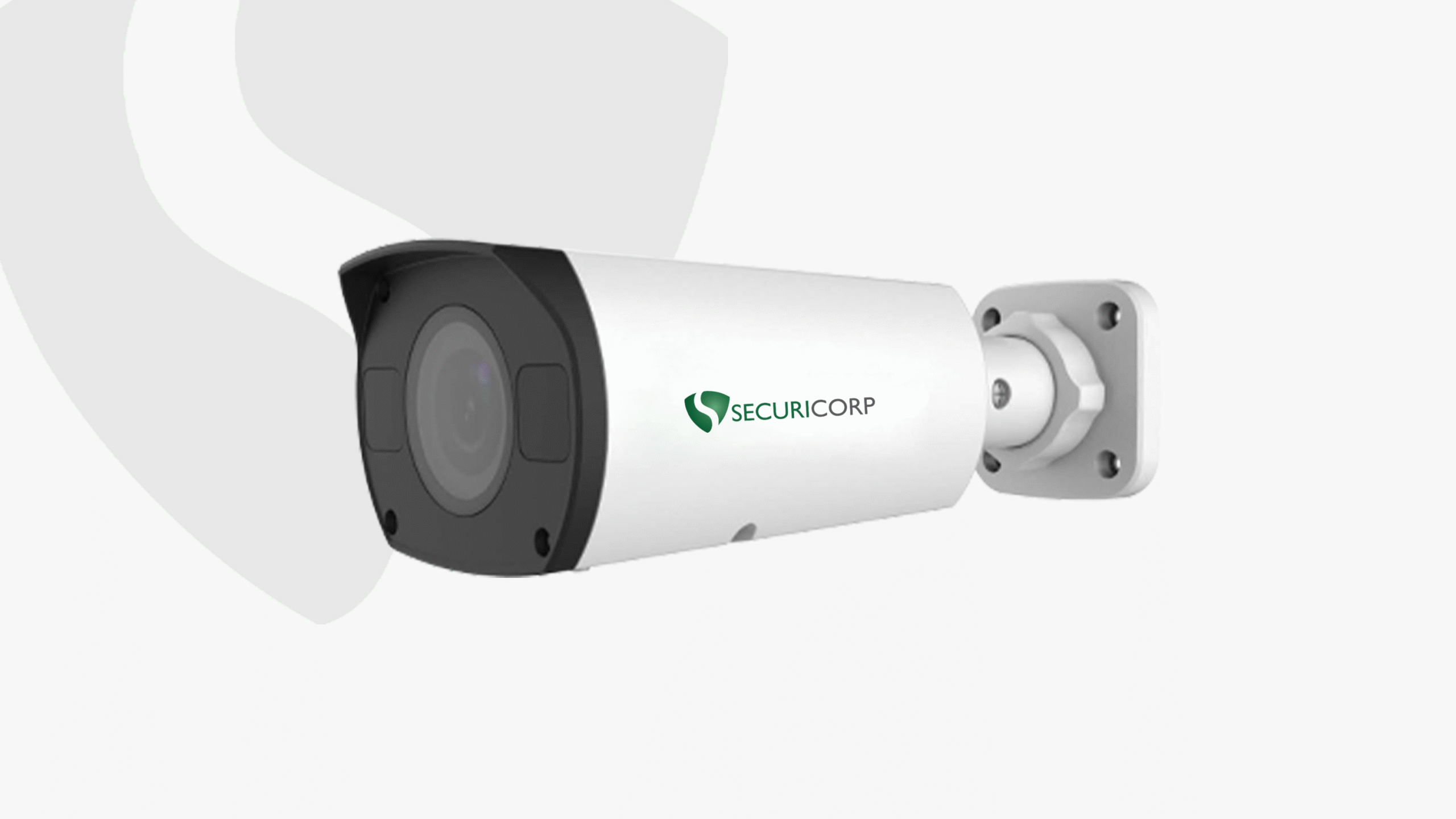

2.0 Megapixel WDR, Motorized IR Bullet Network Camera
The SCM‑OBL02VFIR‑ID22BRW is a 2 MP bullet camera with a 2.8–12 mm varifocal lens, True WDR, and Smart IR up to 50 m. It supports Ultra265/H.265 streaming, motion detection, ROI, and privacy masking. Built tough with IK10/IP67 protection, PoE or 12 V DC, and micro‑SD storage.
| Product Details | |
| Model | SCM-OBL02VFIR-ID22BRW |
| Product Name | 2.0 Megapixel WDR IR Network Bullet Camera |
| Camera | |
| Image Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS |
| Angle of View | 94.0° ~ 28° (H), 56.7°~ 14.4° (V), 122.2°~ 34.4° (O) |
| Mini. Illumination | Color: 0.002Lux (F1.6, AGC ON) 0Lux with IR |
| WDR | 120dB |
| Signal/Noise Ratio | >52dB |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Digital noise reduction | 2D/3D DNR |
| Lens | 2.8 ~ 12mm@F1.6 |
| IR Range | Up to 50m |
| Audio | |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Sampling Rate | 8KHZ |
| Suppression | Supported |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | First Stream: 2MP (1920*1080), Max 30fps; |
| Second Stream: 2MP (1920*1080), Max 30fps; | |
| Third Stream: D1 (720*576), Max 30fps | |
| OSD | Up to 8 areas |
| Privacy Mask | Up to 8 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Edge Storage | Micro SD, up to 256GB |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Interface | |
| Alarm I/O | 1/1 |
| Audio I/O | Input: impedance 35kΩ |
| Output: impedance 600Ω | |
| Network | 1 RJ 45 10M/100M Base-TX Ethernet |
| General | |
| Power Consumption | <9W |
| Power Supply | DC 12V±25%, PoE (IEEE 802.3af) |
| Working Environment | -35°C ~ 60°C (-31°F ~ 140°F) <95% RH |
| Dimensions | 253.4 × 86 × 71.7mm |
| Weight | 1.0 kg |
| Ingress Protection | IP67 |
