- Day/Night Functionality
- Smart IR, up to 30m (98 ft) IR distance
- Up to 120 dB Optical WDR(Wide Dynamic Range)
- 3D DNR (Digital Noise Reduction)
- H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor mode
- Customized OSD
- ONVIF Conformance
- Wide temperature range: -35°C to 60°C (-31°F to 140°F)
- Wide voltage range of ±25%
- IP66
SCM-OBL02VFIR-WD99DP

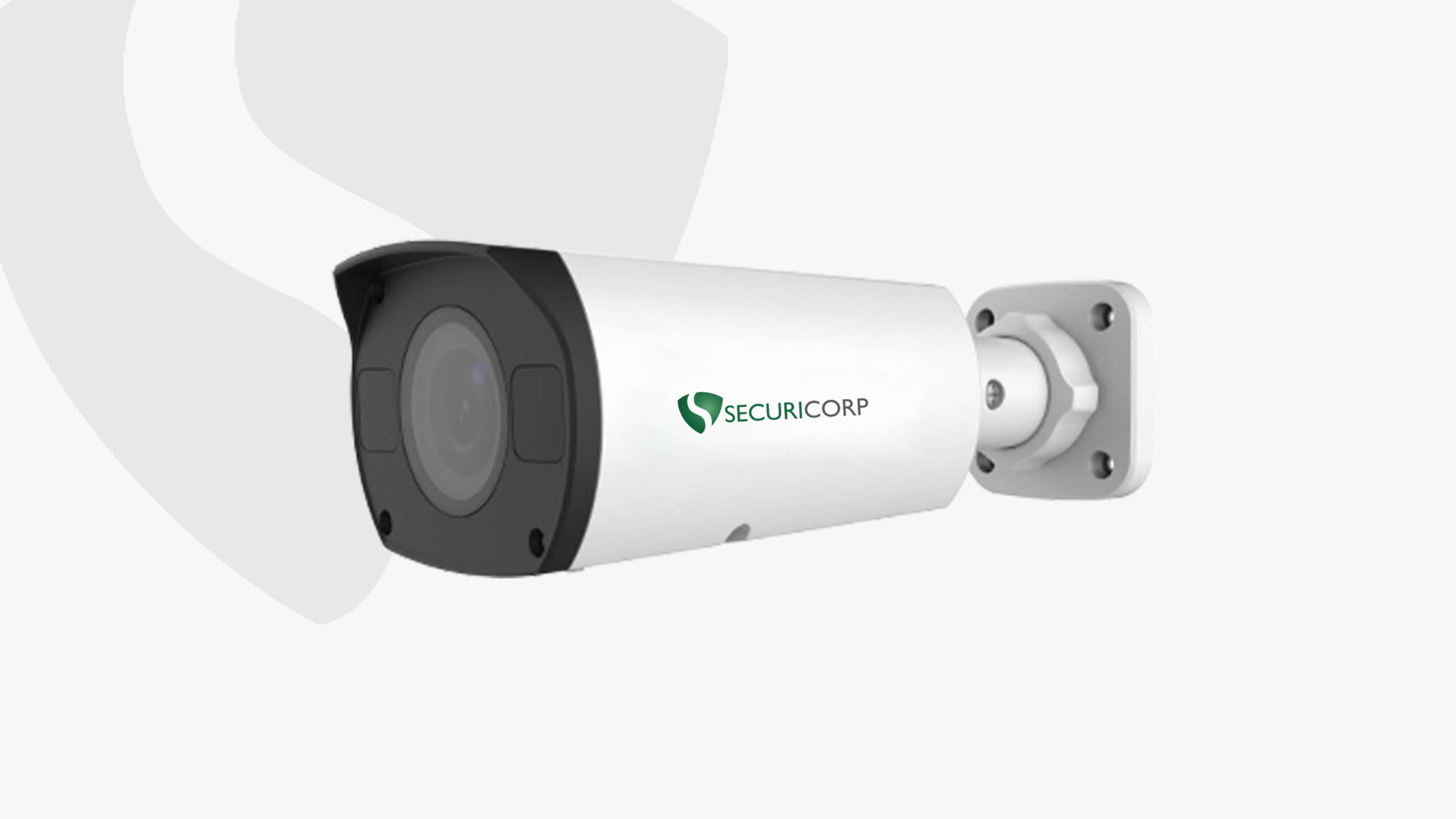

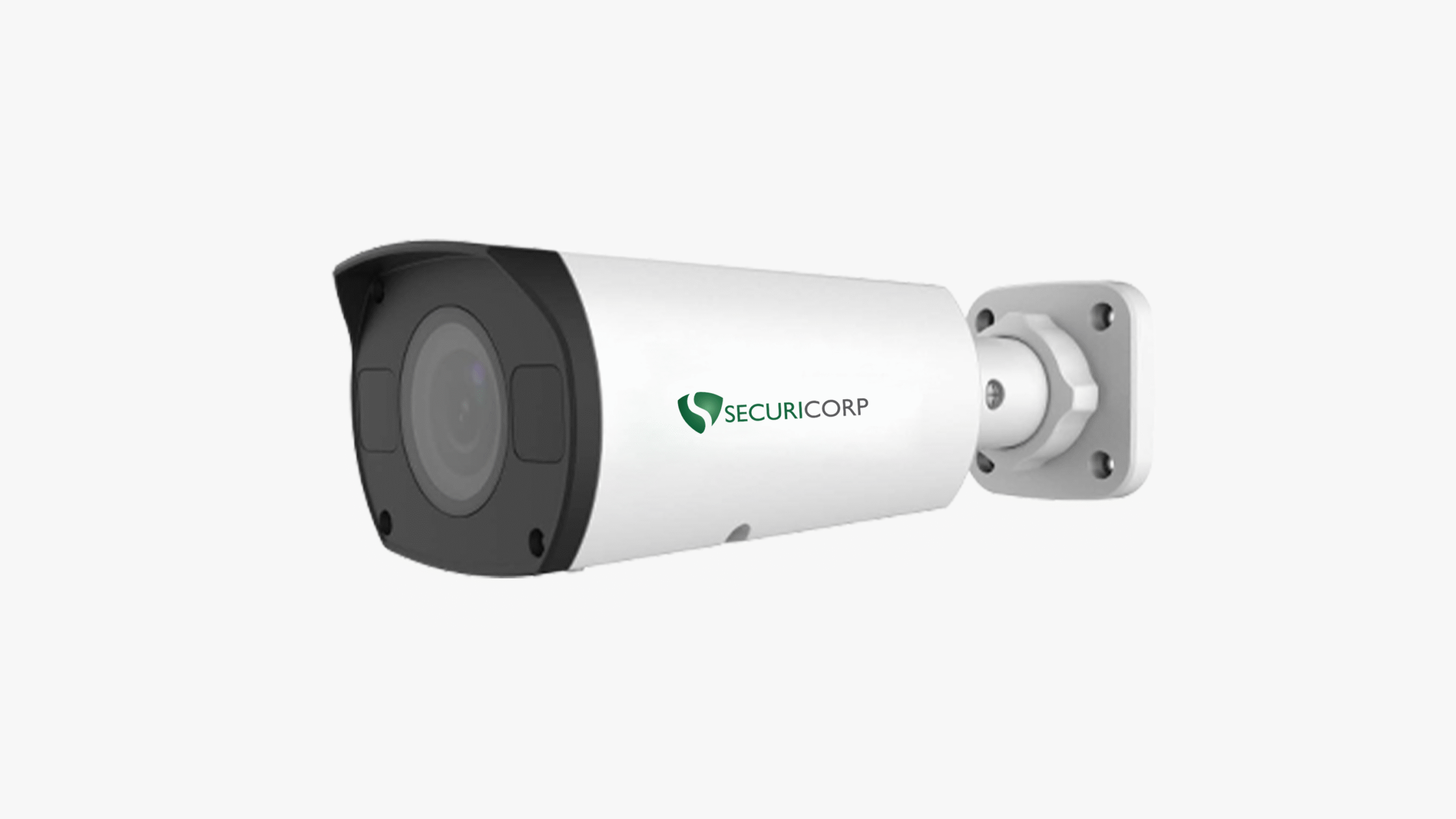

2.0 Megapixel WDR, Varifocal IR Bullet Network Camera
The SCM‑OBL02VFIR‑WD99DP is a 2 MP bullet camera equipped with a 2.8–12 mm motorized lens, True WDR (120 dB), and Smart IR up to 60 m for high-quality imaging in varying light conditions. It offers H.264 triple streaming, 3D DNR, and supports PoE for simplified installation. Designed for outdoor use with IP66 weatherproofing and –40 °C to 60 °C operating range, it includes micro‑SD storage, ONVIF compliance, and advanced motion detection.
Description
Specification
| Model Details | |
| Model | SCM-OBL02VFIR-WD99DP |
| Product Name | 2.0 Megapixel Varifocal, IR Bullet Network Camera |
| Camera | |
| Sensor | 1/3", 2 Megapixel, Progressive Scan CMOS |
| Shutter | Auto/Manual, 1/6~1/100000 s |
| Lens | 2.8~12mm @F1.4; Angle of view: 95°~29° |
| Zoom/Focus | Manual |
| Min. Illumination | Colour: 0.02 Lux (F1.4, AGC ON) |
| 0 Lux with IR on | |
| Day/Night | IR-cut filter with auto switch (ICR) |
| IR Range | Up to 30m (98 ft) IR range |
| S/N | >55 dB |
| WDR | Optical WDR (up to 120 dB) |
| Video | |
| Max. Resolution | 1920 x 1080 |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | 1080P (1920 x 1080) @30 fps; 1080P (1920 x 1080) @25fps |
| 9:16 Corridor Mode | Supported |
| ROI | Supported |
| Video Streaming Available | Triple |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| Smart | |
| Behavior Detection | Intrusion, crossing line, motion detection |
| Exception Detection | Audio Detection |
| Intelligent Identification | Face Detection |
| Statistical Analysis | People Counting |
| Audio | |
| Audio Compression | G.711 |
| Two-way Audio | Supported |
| Storage | |
| Edge Storage | Micro SD, up to 128 GB |
| Network | |
| Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x |
| Compatible Integration | ONVIF, API |
| Interface | |
| Audio I/O | Audio Cable |
| Input: Impedance 35 kΩ; amplitude 2 V [p-p] | |
| Output: Impedance 600 Ω; amplitude 2 V [p-p] | |
| Alarm I/O | 1/ 1 |
| Network | 10M/100M Base-TX Ethernet |
| Video Output | 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] |
| General | |
| Power | 12 V DC, or PoE (IEEE802.3 af) |
| Power consumption: Max 8W | |
| Material | Cast Aluminum |
| Dimensions (L × W × H) | 253.4 ×86 ×71.7 mm (9.98” × 3.4” × 2.8”) |
| Weight | 0.58kg (1.28lb) |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing) |
| Ingress Protection | IP66 |
