- Day/Night Functionality
- Smart IR Technology
- 3D DNR (Digital Noise Reduction)
- Triple Streams
- ROI (Region of Interest)
- 9:16 Corridor Mode
- Customized OSD
- ONVIF Conformance
- Support PoE Power Supply
- Wide Temperature Range: -35°C to 60°C (-31°F to 140°F)
- Wide Voltage Range of ±25%
- IP66

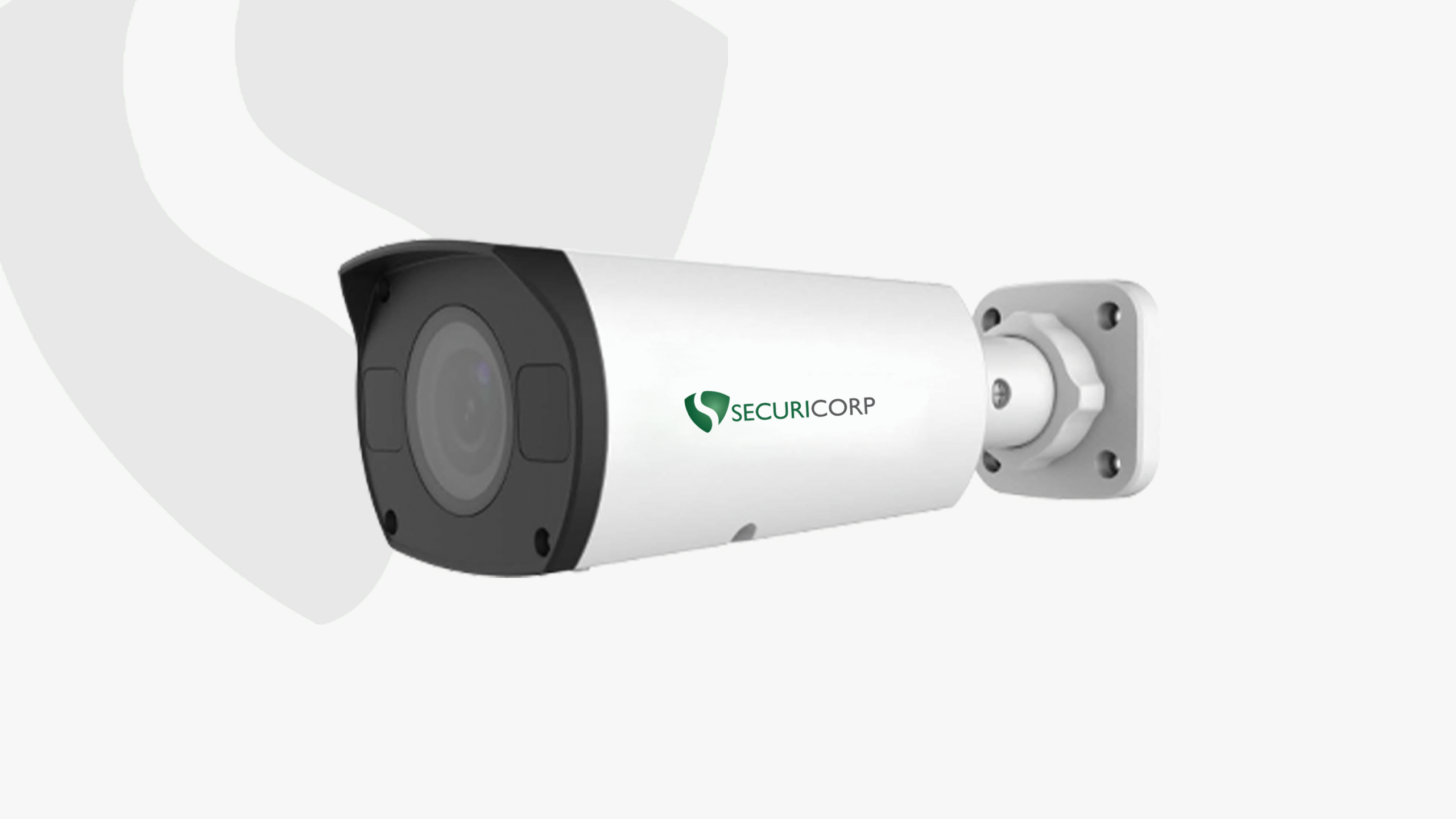

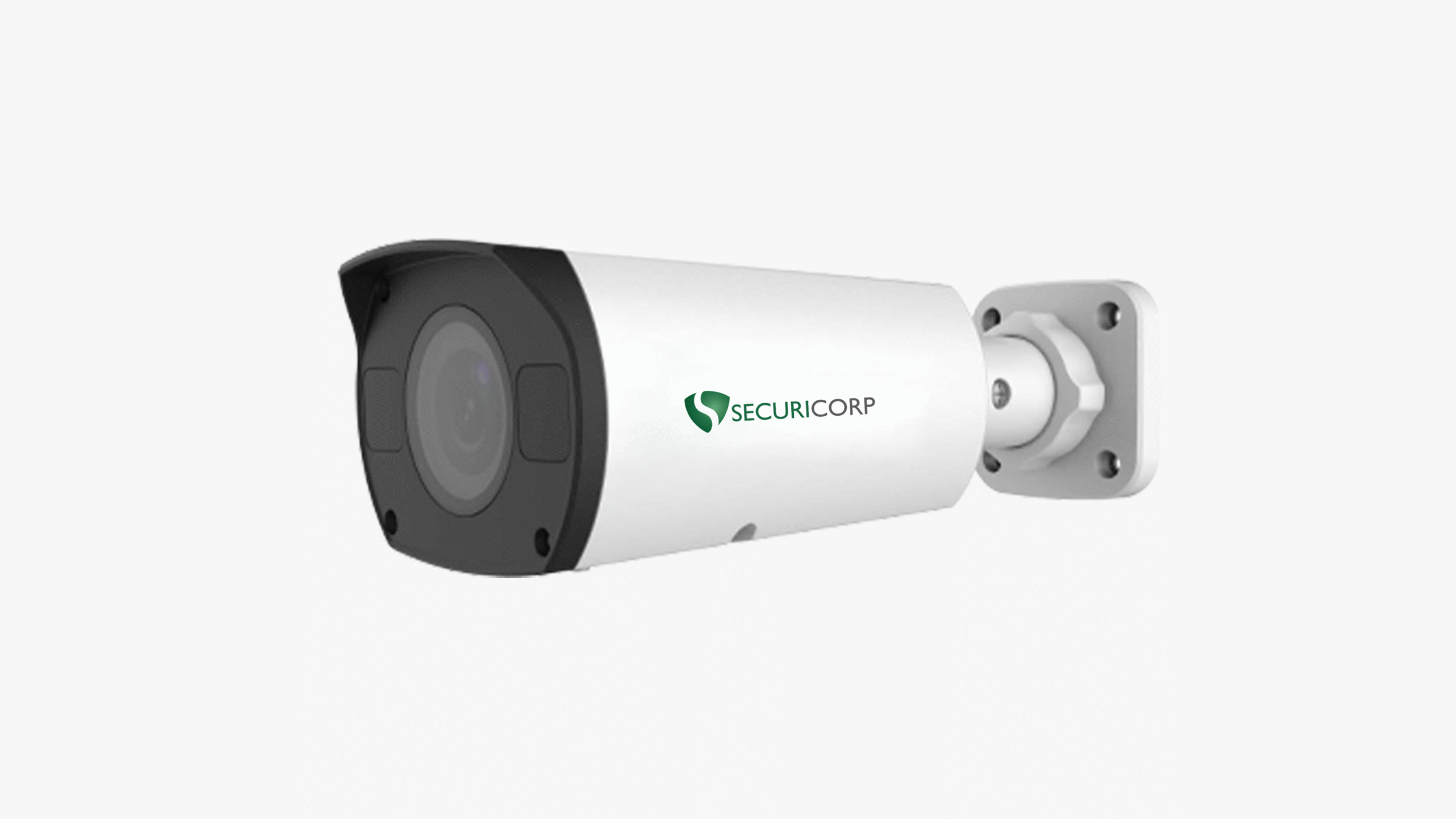

SCM-OBL02VFIR-LX99P
2.0 Megapixel WDR, Varifocal IR Bullet Network Camera
The SCM‑OBL02VFIR‑LX99P is a 2 MP bullet camera with a 2.8–12 mm motorized lens, True WDR (120 dB), and Smart IR up to 60 m, ensuring detailed imaging in challenging light. It supports Ultra265/H.265/H.264 streaming, 3D DNR, and corridor mode. Built for reliability with IP66 protection, PoE power, and operating range from –40 °C to 60 °C. Also features micro‑SD storage, ONVIF compliance, motion detection, and defog function.
Description
Specification
| Model Details | |
| Model | SCM-VDM02VFIR-LX99P |
| Product Name | 2.0 Megapixel Varifocal, Water-Proof, IR Bullet Network Camera |
| Video Details | |
| Max. Resolution | 1920 × 1080 |
| Video Compression | H.264, MJPEG |
| Frame Rate | 1080P (1920×1080): Max. 30 fps; 720P (1280×720): Max. 30 fps; D1 (720×576): Max. 25 fps |
| 9:16 Corridor Mode | Supported |
| ROI | Supported |
| Video Streaming Available | Triple |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| Camera Details | |
| Sensor | 1/2.8", 2.0 Megapixel, Progressive Scan CMOS |
| Shutter | Auto/Manual, 1/6~1/8000s |
| Lens | 2.8~12 mm@F1.4; Angle of view: 90° ~ 28° |
| Zoom/Focus | Manual |
| Min. Illumination | Colour: 0.06 Lux (F1.4, 50IRE) |
| Black & White: 0.03Lux (F1.4, 50IRE) | |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | >52dB |
| Audio Details | |
| Audio Compression | G.711 |
| Two-way Audio | Supported |
| Network Details | |
| Protocols | L2TP, Ipv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, Qos, NTP, FTP, HTTP, SNMP, SIP |
| Security | User Access Log, Password Protection, HTTPS Encryption, RTSP Authentication, ARP Binding, IP Address Filtering, Video Watermark, IEEE 802.1x |
| Compatible Integration | ONVIF, API |
| Storage Details | |
| Edge Storage | Micro SD, up to 128 GB |
| Interface Details | |
| Audio I/O | Audio Cable |
| Input: impedance 35 kΩ; amplitude 2 V [p-p] | |
| Output: impedance 600 Ω; amplitude 2 V [p-p] | |
| Alarm I/O | 1/1 |
| Network | 10M/100M Base-TX Ethernet |
| General Details | |
| Power | 12 V DC, or PoE (IEEE802.3 af) |
| Power consumption: Max 8W | |
| Material | Cast Aluminum |
| Dimensions (L × W × H) | 253.4 ×86 ×71.7 mm (9.98” × 3.4” × 2.8”) |
| Weight | 0.58kg (1.28lb) |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing) |
| Ingress Protection | IP66 |
