- Starlight Illumination
- 4X Optical Zoom & Auto Focus
- Up to 120 dB WDR (Wide Dynamic Range)
- Full Spectrum Light with both White and Infrared LED Design
- White Light Open while PIR alarm Received to Express alarm and Ensure Colorful Surveillance
- Smart IR, up to up to 50m (164ft) IR Distance
- While Light, Up to 10m (33ft)
- Optical Glass Window with Higher Light Transmittance
- IR Anti-Reflection Window to Increase the Infrared Transmittance
- Day/Night Functionality
- H.265, H.264, MJPEG
- Triple Streams
- ROI (Region of Interest)
- 9:16 Corridor Mode
- Wide Temperature Range: -40°C to 60°C (-40°F to 140°F)
- Customized OSD
- ONVIF Conformance
- Support PoE Power Supply
- Wide Voltage Range of ±25%
- IP67

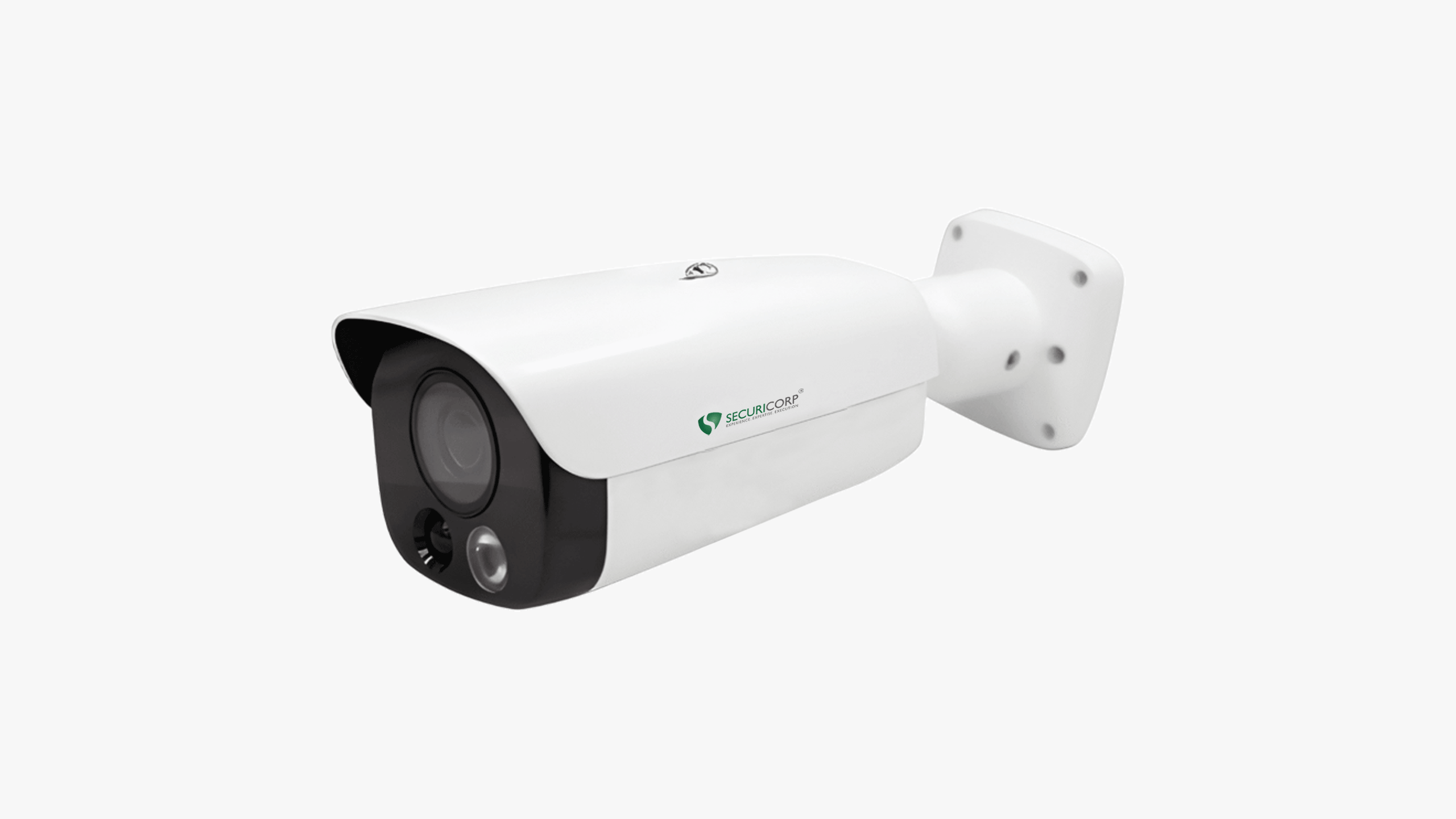

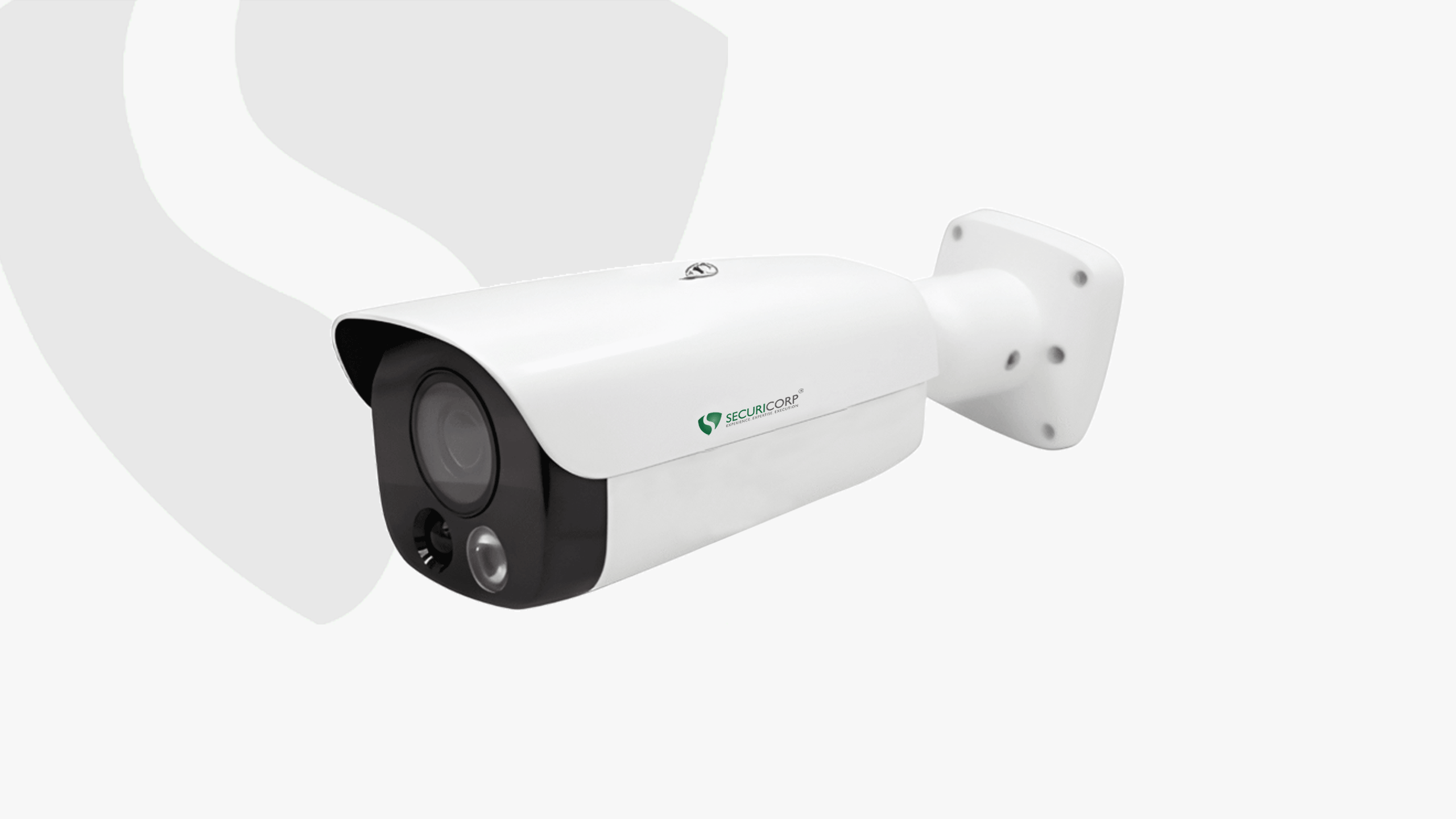

SCL-OBL02MVIR-SL26UDZ
2.0 Megapixel WDR, Starlight Full Spectrum, AF, IR Bullet Network Camera
The SCL‑OBL02MVIR‑SL26UDZ is a 2 MP Starlight bullet IP camera with a motorized 2.8–12 mm lens, 4× optical zoom, and True WDR (120 dB) for clear, high-contrast imaging. It features dual illumination with Smart IR up to 50 m and white light up to 10 m, housed in a durable IP67-rated aluminum body with PoE, H.265 streaming, ONVIF support, and micro‑SD storage up to 128 GB.
Description
Specification
| Model Detail | |
| Model | SCL-OBL02MVIR-SL26UDZ |
| Product Name | 2.0 Megapixel WDR, Starlight Full Spectrum, AF, IR Bullet Network Camera |
| Camera | |
| Sensor | 1/2.8", 2.0 Megapixel, Progressive Scan CMOS |
| Shutter | Auto/Manual, 1/6~1/8000s |
| Lens | 2.8~12mm@F1.6, DC-Iris |
| Angle of View (H) | 97°(wide) ~ 35°(Tele) |
| Zoom/Focus | 4X Optical Zoom / Auto Focus |
| Min. Illumination | Colour: 0.002 Lux (F1.6, AGC ON) |
| 0 Lux with IR | |
| Day/Night | IR-Cut Filter with auto Switch (ICR) |
| S/N | >52dB |
| WDR | 120dB |
| IR | Smart-IR , up to 50m (164ft) IR Range |
| White Light | Up to 10m (33ft) with PIR Alarm |
| Video | |
| Max. Resolution | 1920 × 1080 |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | 1080P (1920*1080): Max. 30 fps |
| 9:16 Corridor Mode | Supported |
| ROI | Supported |
| Video Streaming Available | Triple |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| Audio | |
| Audio Compression | G.711 |
| Two-Way Audio | Supported |
| Storage | |
| Edge Storage | Micro SD, Up to 128 GB |
| Network | |
| Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, SIP, QoS |
| Security | User Access Log, Password Protection, HTTPS Encryption, RTSP Authentication, ARP Binding, IP Address Filtering, Video Watermark, IEEE 802.1x |
| Compatible Integration | ONVIF, API |
| Interface | |
| Audio I/O | Audio cable |
| 1 Input: impedance 35 kΩ; amplitude 2 V [p-p] | |
| 1 Output: impedance 600 Ω; amplitude 2 V [p-p] | |
| Alarm I/O | 2/1 |
| Network | 10M/100M Base-TX Ethernet |
| Video Output | 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] |
| Serial | 1 RS485 |
| General | |
| Power | DC12V±25%, AC24V±25% or PoE (IEEE802.3 at) |
| Power consumption: 13.7W | |
| Material | Cast aluminum |
| Dimensions (L × W × H) | 305.5 ×104.1 ×97.3mm (12.0” × 4.1” × 3.8”) |
| Weight | 1.65 kg (3.6 lb) |
| Working Environment | -40°C ~ +60°C (-40°F ~ 140°F), Humidity ≤ 95% RH (Non-Condensing) |
| Ingress Protection | IP67 |
