- 64−chanel input
- Support cloud upgrade
- Support N+1 Hot spare
- Suport RAlD 0, 1, 5, 6, 10
- Support for 12V Power output
- 8 SATA HD s, Up to 8 TB for each HD
- Up to 12 Megapixels resolution recording
- Support Ultra H.265/H.265/H.264 video formats
- HDMl1/VGA and HDMl2 independent outputs provided
- Support 2−ch HDMI, 1−ch VGA, 1−ch CVBS, HDMI2 at up to 4K (3840×2160) resolution
- ANR technology to enhance the storage reliability when the network is disconnected
- Various fisheye dewarping modes for live view and playback for both web interface and GUl
- Third−party lP camera supported with ONVlF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T

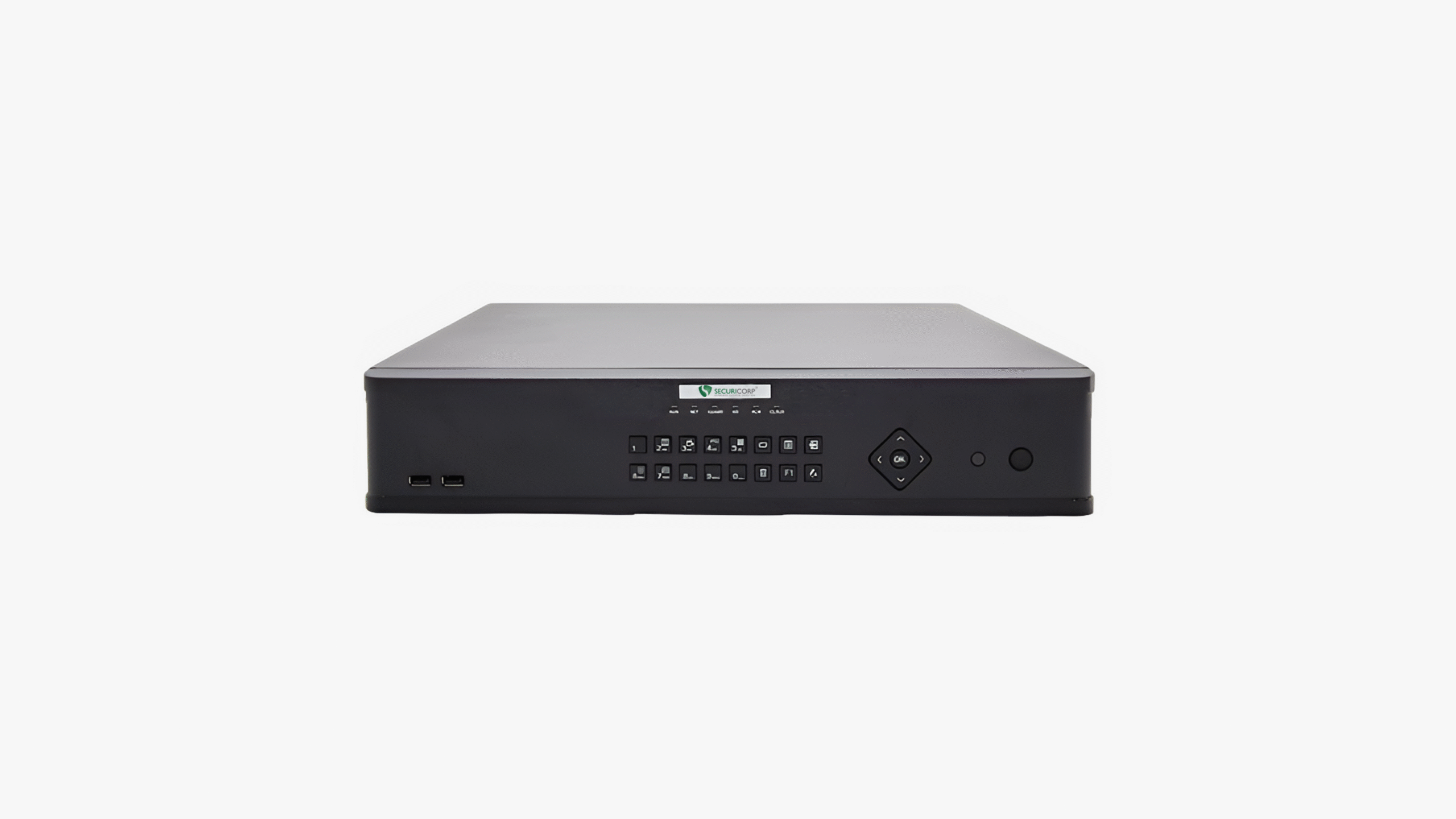

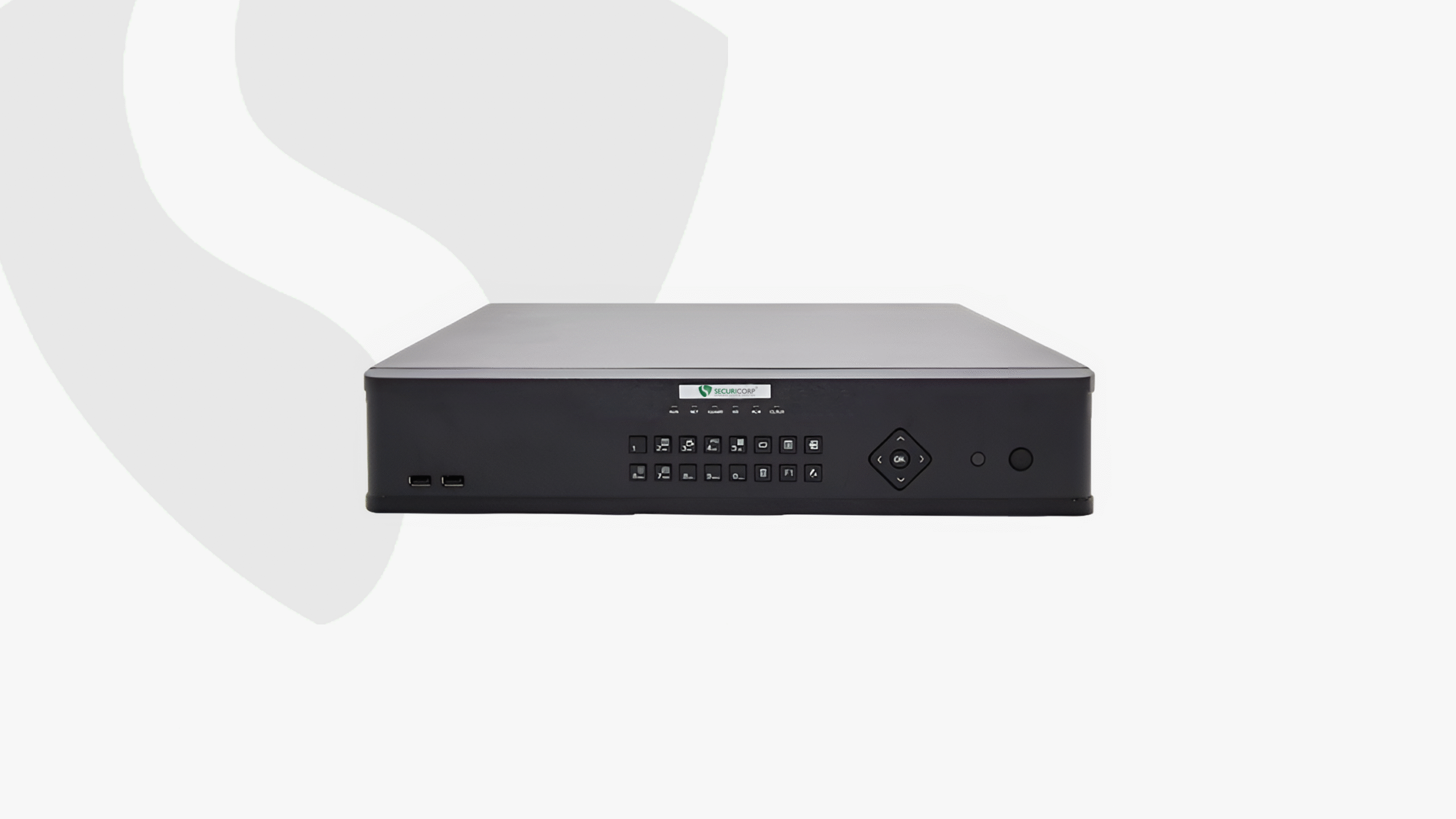

SCI-5064-RDE564
64 Channel Network Video Recorder
The SCI-5064-RDE564 is a powerful 64-channel NVR built for large, demanding security systems. It supports up to 12 MP recording with advanced compression and 4K display output for clear monitoring. With massive storage, RAID protection, and smart analytics like face detection and people counting, it ensures reliable and scalable surveillance.
Description
Specification
| Model Details | |
| Model | SCI-5064-RDE564 |
| Product Name | 64ChannelNetworkVideoRecorder |
| Video/Audio Input | |
| IP Video Input | 64-Ch |
| Two-way Audio Input | 1-Ch,RCA |
| Network | |
| Incoming Bandwidth | 320Mbps |
| Outgoing Bandwidth | 320Mbps |
| Remote Connection | 128 |
| Decoding | |
| Compression | Ultra 265, H.265, H.264 |
| Live view/ Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1 |
| Video/Audio Output | |
| HDMI/VGA Output | HDMI1/VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz HDMI2: 4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
| CVBS Output | 1-ch, BNC |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | 16-ch |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
| Hard Disk | |
| SATA | 8 SATA interfaces |
| Capacity | up to 8TB for each HDD |
| eSATA | 1 eSATA interface |
| Smart | |
| VCA Detection | Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking |
| VCA Search | Face search, Behavior search |
| Statistical Analysis | People counting |
| Disk Array | |
| Array Type | RAID 0, 1, 5, 6, 10 |
| External Interface | |
| Network Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces |
| Serial Interface | 1 x RS232, 1 x RS485 |
| USB Interface | Front panel: 2 x USB2.0,Rear panel: 1 x USB3.0 |
| Alarm In | 16-ch |
| Alarm Out | 4-ch |
| General | |
| Power Supply | 100 ~ 240 VAC |
| Power Consumption: | ≤ 20 W( without HDD ) |
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ) |
| Humidity | ≤ 90% RH(non-condensing) |
| Dimensions(W×D×H) | 442mm ×425mm× 86mm (17.4" × 16.7"× 3.4") |
| Weight ( without HDD ) | ≤ 5.13 Kg (11.31 lb ) |
