- 32-Channel Input
- Third-Party IP cameras supported with ONVIF conformance
- Support 2-Ch HDMI, 1-Ch VGA, HDMI2 at up to 4K(3840×2160) Resolution
- Up to 12 Megapixels Resolution Recording
- Support H.265/H.264 video formats
- Accurate Retrieval, Instant Playback
- 4 SATA HDDs, Up to 8TB for each HDD
- Support various VCA detection alarm and VCA search
- Support for 12V Power Output
- Plug & Play with up to 16 independent PoE network interfaces
- Support for P2P, UPnP, NTP, DHCP, PPPoE
- Support for Mobile Client Access

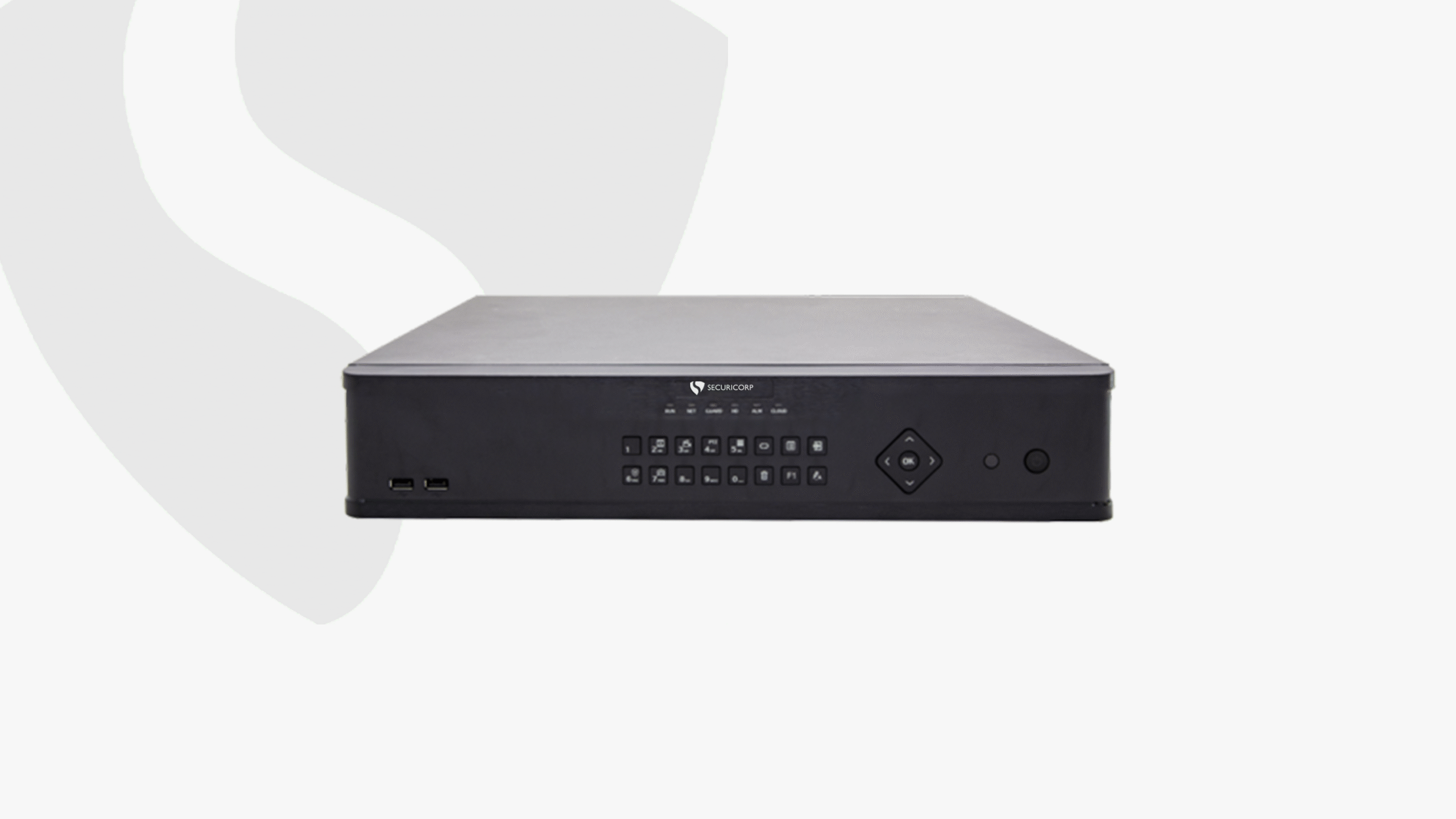

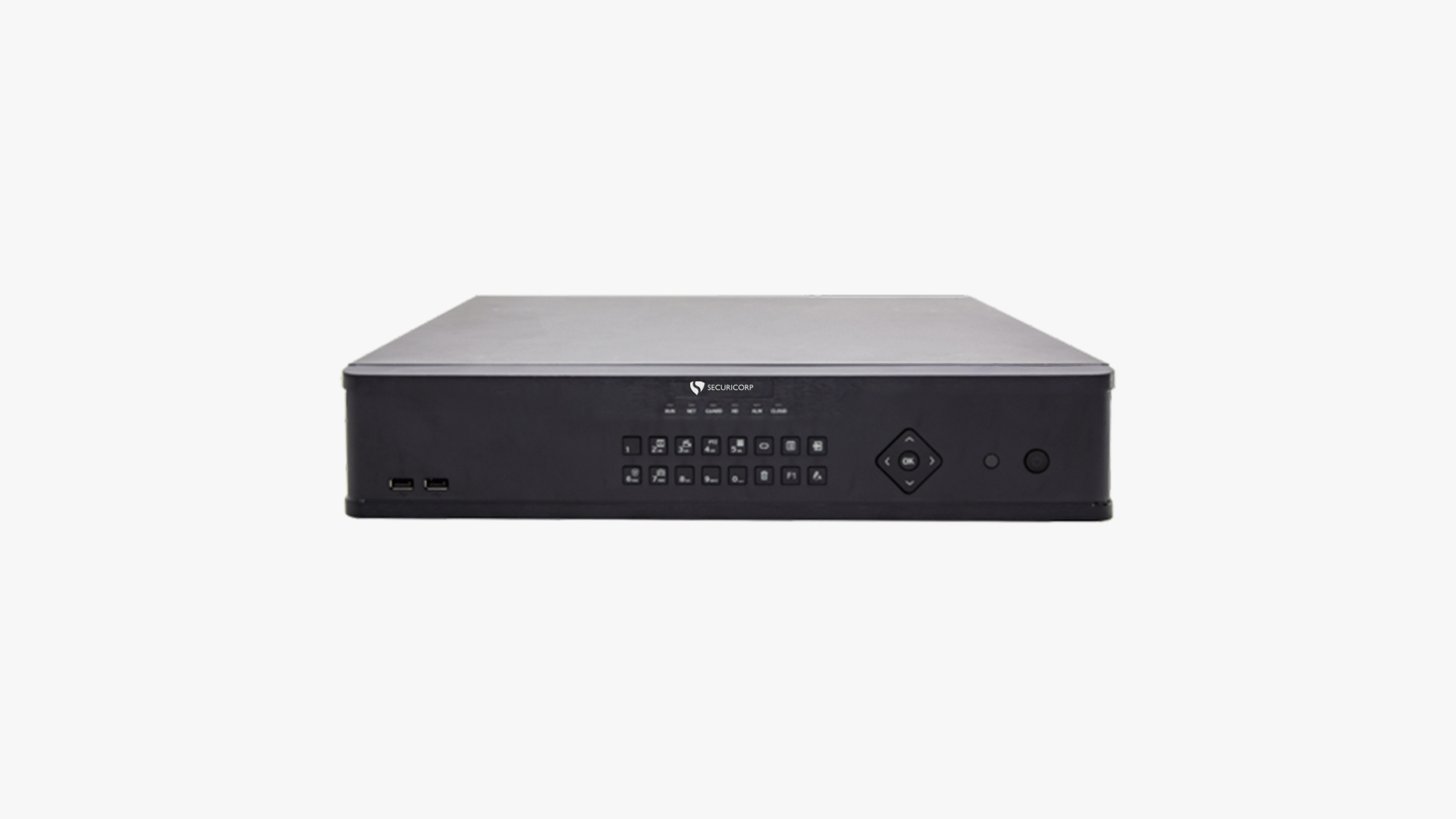

SCI-4032-POE432
32 Channel Input Network Video Recorder
The SCI‑4032‑POE432 is a 32-channel NVR with support for up to 12MP resolution, ensuring ultra-clear video surveillance. It features built-in PoE ports for easy camera connectivity and supports advanced video analytics like intrusion and face detection. With dual HDMI/VGA outputs and support for up to 40TB storage, it’s ideal for large-scale security systems.
Description
Specification
| Model Details | |
| Model | SCI-4032-POE432 |
| Product Name | 32 Channel Input Network Video Recorder |
| Video/Audio Input | |
| IP Video Input | 32-Ch |
| Two-way Audio Input | 1-Ch, RCA |
| Network | |
| Incoming Bandwidth | 320Mbps |
| Outgoing Bandwidth | 320Mbps |
| Remote Connection | 128 |
| Video/Audio Output | |
| HDMI/VGA Output | HDMI1/VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
| HDMI2: 4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz | |
| Audio Output | 1-Ch, RCA |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Synchronous Playback | 16-Ch |
| Decoding | |
| Compression | H.265/H.264 |
| Live view/ Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 4 x 12MP@20, 4 x 4K@30, 8 x 4MP@20, 16 x 1080p@25, 32 x 720p@25 |
| Hard Disk | |
| SATA | 4 SATA Interfaces |
| Capacity | Up to 8TB for each HDD |
| External Interface | |
| Network Interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface |
| Network Function | HTTP, HTTPS, UPNP, RTSP, RTP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, IP Server, P2P |
| Serial Interface | 1 x RS-485 |
| USB Interface | Front Panel: 2 x USB2.0 |
| Rear Panel: 1 x USB3.0 | |
| Alarm In | 16-Ch |
| Alarm Out | 4-Ch |
| Power Output | 12 VDC |
| PoE | |
| Interface | 16 Independent 100 Mbps PoE Network Interfaces |
| Supported Standard | IEEE 802.3at |
| General | |
| Power Supply | 100 ~ 240 VAC |
| Consumption (without HDD and PoE) | ≤ 20 W |
| PoE | Max 30W for single port |
| Max 200W in total ( 12.5W for each ) | |
| Working Temperature | -10°C ~ + 55°C ( +14°F ~ +131°F ) |
| Working Humidity | 10% ~ 90% |
| Dimensions | 86 × 442 × 425mm (3.4" × 17.4" × 16.7" ) |
| Weight ( without HDD ) | ≤ 5.24 Kg ( 11.55 lb ) |
