- Auto Day/Night Functionality
- 3D DNR (Digital Noise Reduction)
- Optical Defog & Digital Defog
- H.265, H.264, MJPEG
- Embedded Smart Algorithm
- 4000 * 3000 Resolution Supported
- Triple streams
- ROI (Region of Interest)
- 9:16 Corridor Format
- Optional Network Interfaces with Ethernet RJ45 and optical SFP
- ONVIF Conformance
- AC 24V /DC 12 V/PoE with Uninterruptible Power Supply
- Wide Temperature Range: -20°C to 60°C (-4°F to 140°F)
- Wide Voltage Range of ±25%
- 6 KV Surge Protection Designed for Network Interface

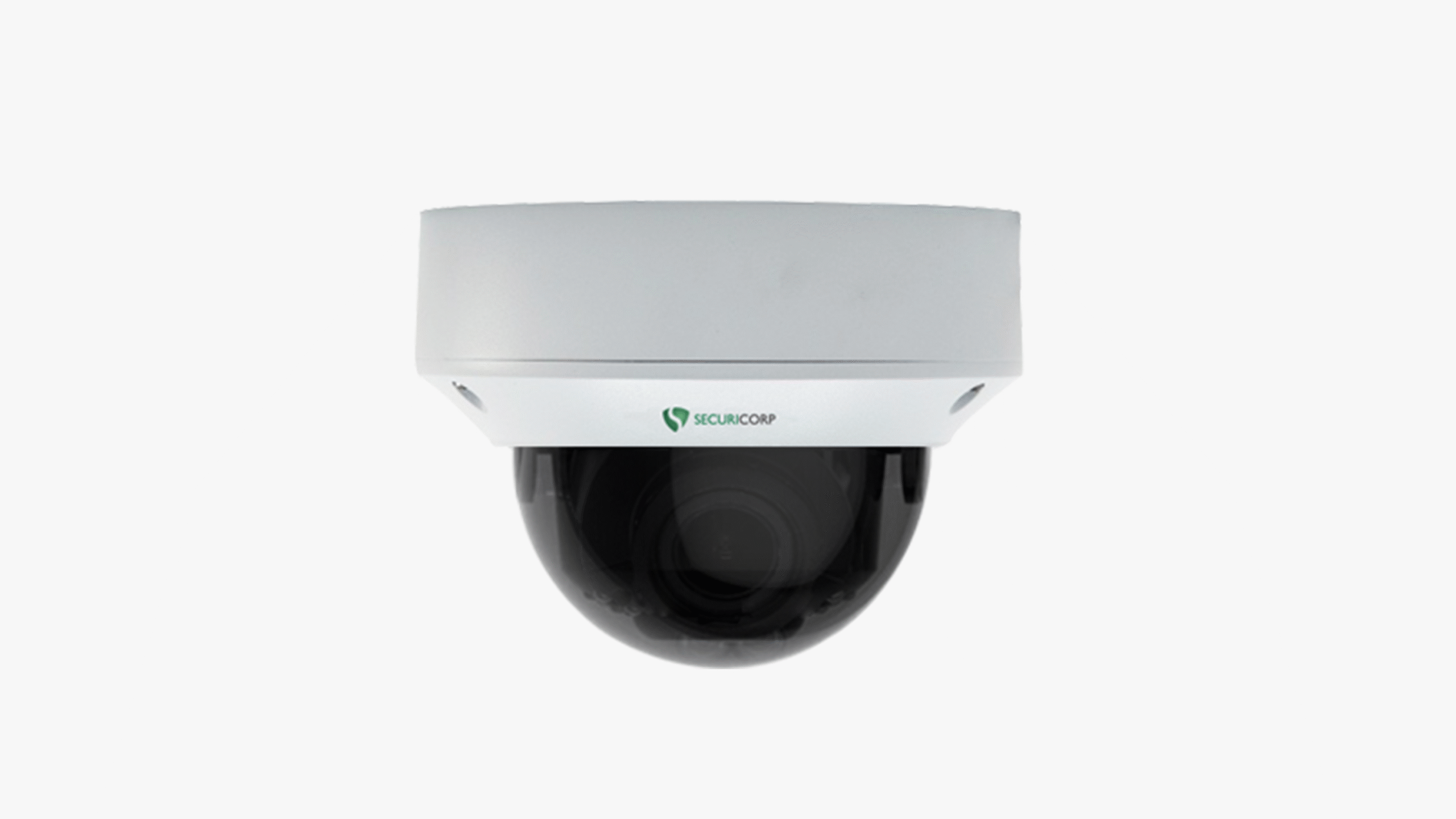

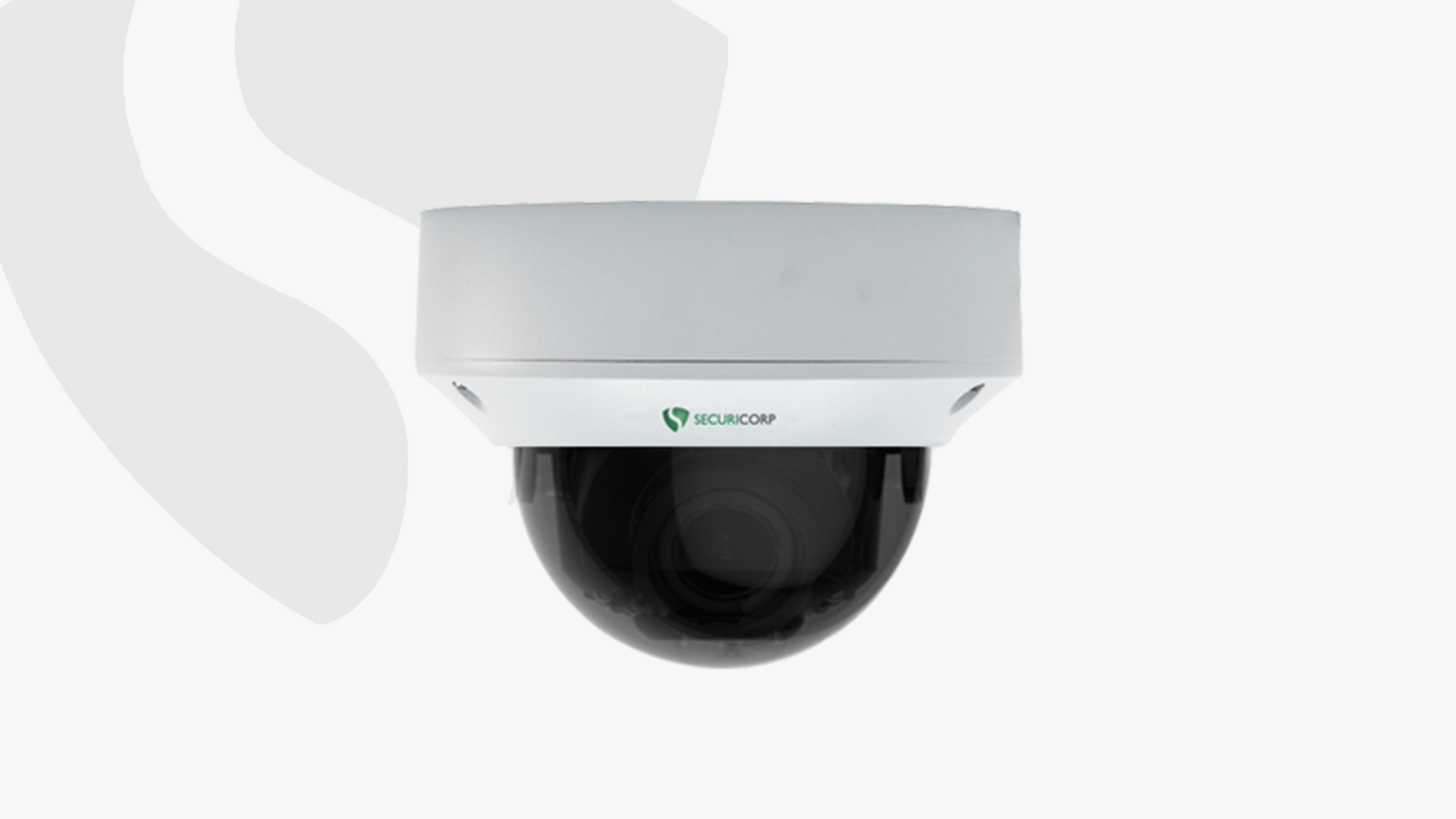

SCL-VDM08MVIR-WD83VDZ
8.0 Megapixel 4K Vandal-Resistant, Vari-Focal, WDR, IP Dome Network Camera
This rugged 8 MP IP dome camera features True WDR, 4× optical zoom, and Smart‑IR up to 30 m for clear day-and-night surveillance.
With IK10 vandal resistance, IP66 weatherproofing, and H.265 streaming, it’s built for durability and efficient, flexible deployment.
Description
Specification
| Model Details | |
| Model | SCL-VDM08MVIR-WD83VDZ |
| Product Name | 8.0 Megapixel 4K Vandal-Resistant, Vari-Focal, WDR, IP Dome Network Camera |
| Camera | |
| Sensor | 1/2.5", 8.0 Megapixel, Progressive Scan CMOS |
| Shutter | Auto/Manual, 1/6~1/8000 s |
| Lens | 2.8~12 mm@F1.6; Angle of View (H): 105.0° (wide) ~30° (tele) |
| Zoom/Focus | 4X Optical Zoom / Auto Focus |
| Min. Illumination | Colour: 0.02 Lux (F1.6, AGC ON) |
| 0Lux with IR | |
| Day/Night | IR-Cut Filter with auto switch (ICR) |
| IR Range | Smart-IR, up to 30m (98 ft) IR range |
| S/N | >55dB |
| WDR | True WDR 120dB |
| Video | |
| Max. Resolution | 3840×2160 |
| Video Compression | H.265,H.264,MJPEG |
| Capture Collect Mode | 4K (3840×2160): Max.30 fps; 1080P (1920×1080): Max. 30 fps |
| 9:16 Corridor Mode | Supported |
| ROI | Supported |
| Video Streaming Available | Triple |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 8 areas |
| Audio | |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Storage | |
| Edge Storage | Micro SD, up to 128 GB |
| Network | |
| Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x |
| Compatible Integration | ONVIF, API |
| Interface | |
| Audio I/O | Audio Cable |
| Input: impedance 35 kΩ; amplitude 2 V [p-p] | |
| Output: impedance 600 Ω; amplitude 2 V [p-p] | |
| Alarm I/O | 1/ 1 |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| Video Output | 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] |
| Reset | 1 Reset Button |
| Power Output | DC12V Power Output With PoE |
| General | |
| Power | 12 V DC, or PoE (IEEE802.3 af) |
| Power consumption: Max.8.7 W | |
| Dimensions (Ø x H) | Φ148 x 111.3 mm (Ø5.8” x 4.4”) |
| Weight | 0.75 kg (1.7 lb) |
| Working Environment | -40°C ~ +60°C (-40°F ~ 140°F), Humidity ≤ 95% RH(non-condensing) |
| Vandal Resistant | IK10 |
